Century
1.5HP 1PH 56C 4P ODP 1725 115/230V
Mfr # C508ES | Wright’s # CEN C508ES

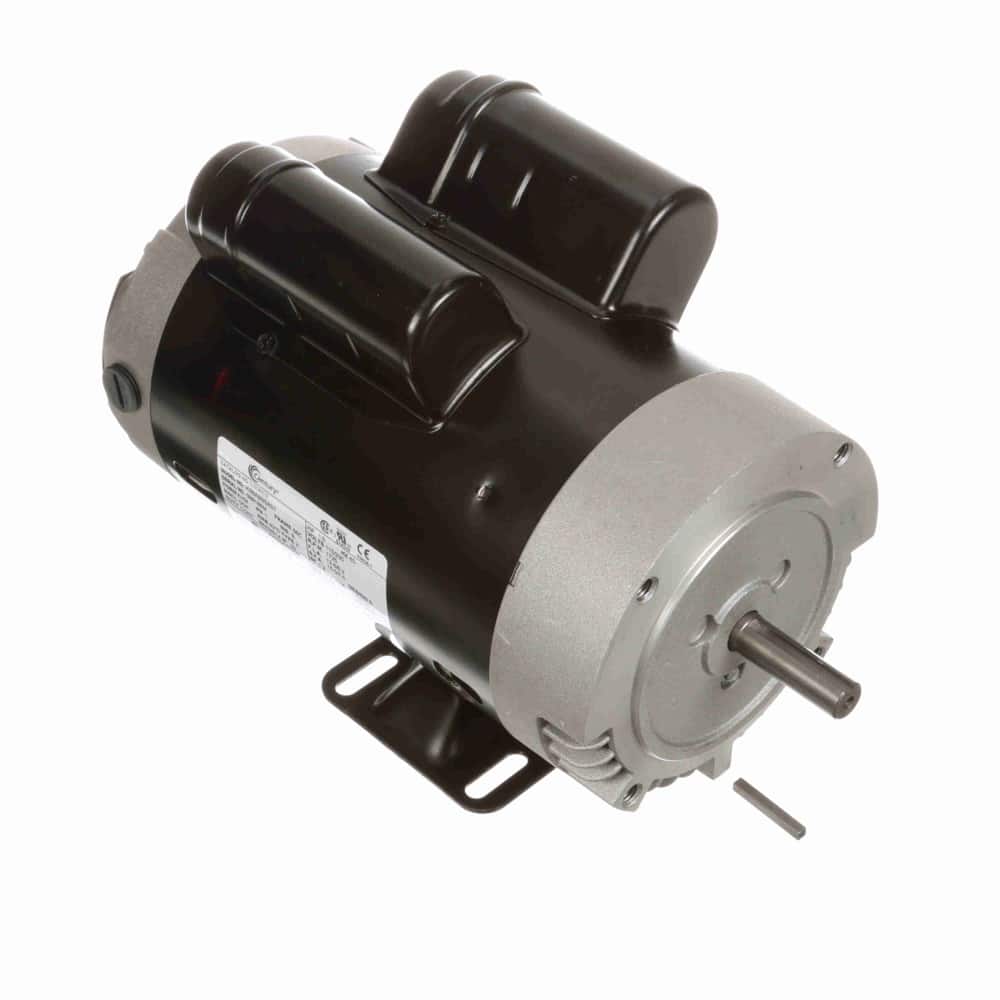

1.5HP 1-Phase General Purpose Motor, 1 Phase, 56C Frame, 1725 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
C508ES
Wright's #
CEN C508ES
Country of Origin
MEX
Specifications
C Dim
13.69"
Electrical Type
Capacitor Start Capacitor Run
Enclosure
ODP
Frame
56C
Frequency
60 Hz
HP
1.5 HP
HP2
1.5 HP
Insulation Class
B
kW
1.1kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
12.6/6.3
Rated Voltage
115/230
Rotation
Counterclockwise Lead End
RPM
1725
Service Factor
1.2
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Premium efficiency promotes improved reliability.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
1.5HP 1-Phase General Purpose Motor, 1 Phase, 56C Frame, 1725 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/230V, ODP Enclosure
