Century

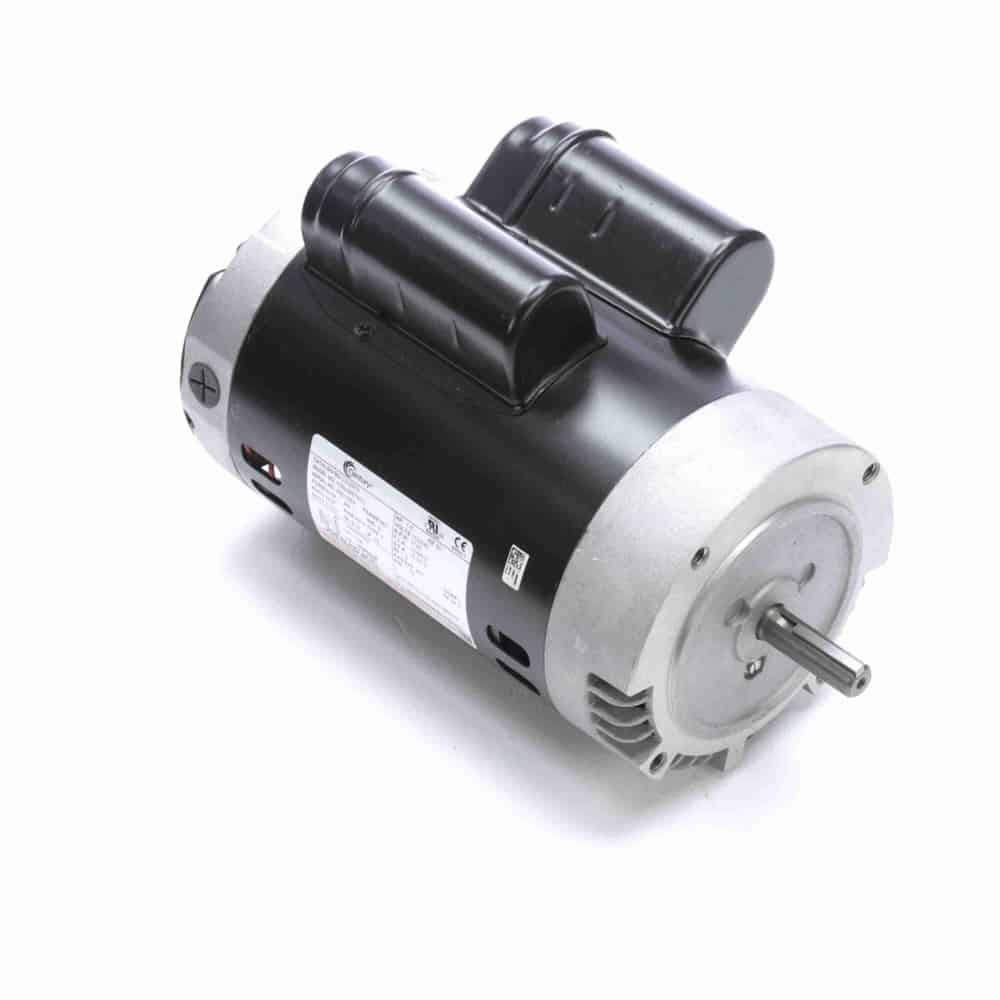

1.5HP 1PH 56C 4P ODP 1725 115/230V
Mfr # C506ES | Wright’s # CEN C506ES
1.5HP 1-Phase General Purpose Motor, 1 Phase, 56C Frame, 1725 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/230V, ODP Enclosure
$698.80
Product Information
Brand Century
Mfr # C506ES
Wright's # CEN C506ES
Country of Origin MEX
Specifications
C Dim 13.69"
Electrical Type Capacitor Start Capacitor Run
Enclosure ODP
Full Load Efficiency 82.5
Frame 56C
Frequency 60 Hz
HP 1.5 HP
HP2 1.5 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 12.6/6.3
Rated Voltage 115/230
Rotation Counterclockwise Lead End
RPM 1725
Service Factor 1.2
Shaft Diameter 0.625"
Speed 1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Premium efficiency promotes improved reliability.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
1.5HP 1-Phase General Purpose Motor, 1 Phase, 56C Frame, 1725 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/230V, ODP Enclosure
