Century

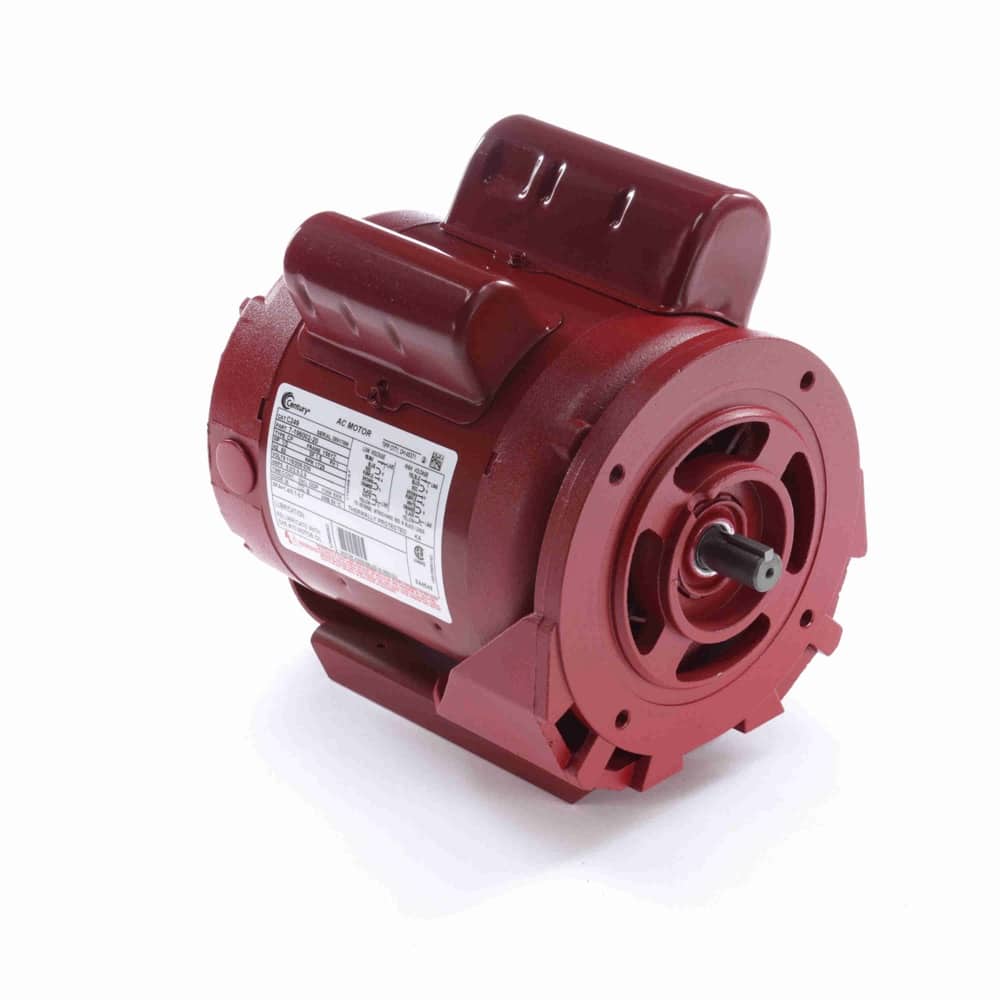

1/2HP 1PH 56YZ 4P ODP 1725 115/208-230V AOL CIRC
Mfr # C249 | Wright’s # CEN C249
1/2HP Circulator Pump Motor, 1 Phase, 56YZ Frame, 1725 RPM, 1 Speed, Capacitor Start, Capacitor Run, Single Or Dual Voltage, 115/208-230V, ODP Enclosure
$437.65
Product Information
Brand
Century
Mfr #
C249
Wright's #
CEN C249
Country of Origin
MEX
Specifications
C Dim
9.93"
Electrical Type
Capacitor Start, Capacitor Run, Single Or Dual Voltage
Enclosure
ODP
Frame
56YZ
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
50°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
5.8/2.8-2.9
Rated Voltage
115/208-230
Rotation
Clockwise
RPM
1725
Service Factor
1.5
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
Automatic reset thermal protector
1/2HP Circulator Pump Motor, 1 Phase, 56YZ Frame, 1725 RPM, 1 Speed, Capacitor Start, Capacitor Run, Single Or Dual Voltage, 115/208-230V, ODP Enclosure
