Century

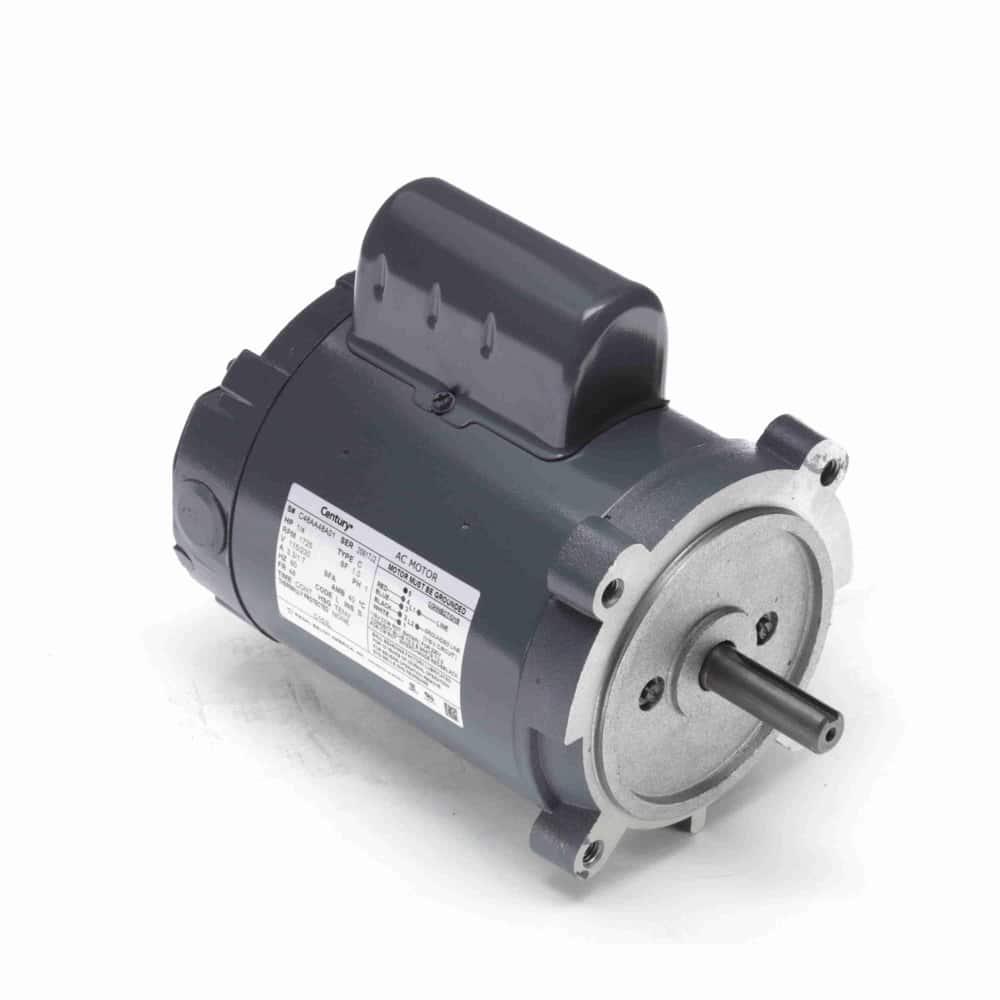

1/4HP 1PH 56C 4P TENV 1725 115/230V
Mfr # C153L | Wright’s # CEN C153L
1/4HP 1-Phase General Purpose Motor, 1 Phase, 56C Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, TENV Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
C153L
Wright's #
CEN C153L
Country of Origin
MEX
Specifications
C Dim
10.02"
Electrical Type
Capacitor Start Induction Run
Enclosure
TENV
Frame
56C
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
3.3/1.7
Rated Voltage
115/230
Rotation
Reversible
RPM
1725
Service Factor
1
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
Heavy gauge steel frame and base
1/4HP 1-Phase General Purpose Motor, 1 Phase, 56C Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, TENV Enclosure
