Century

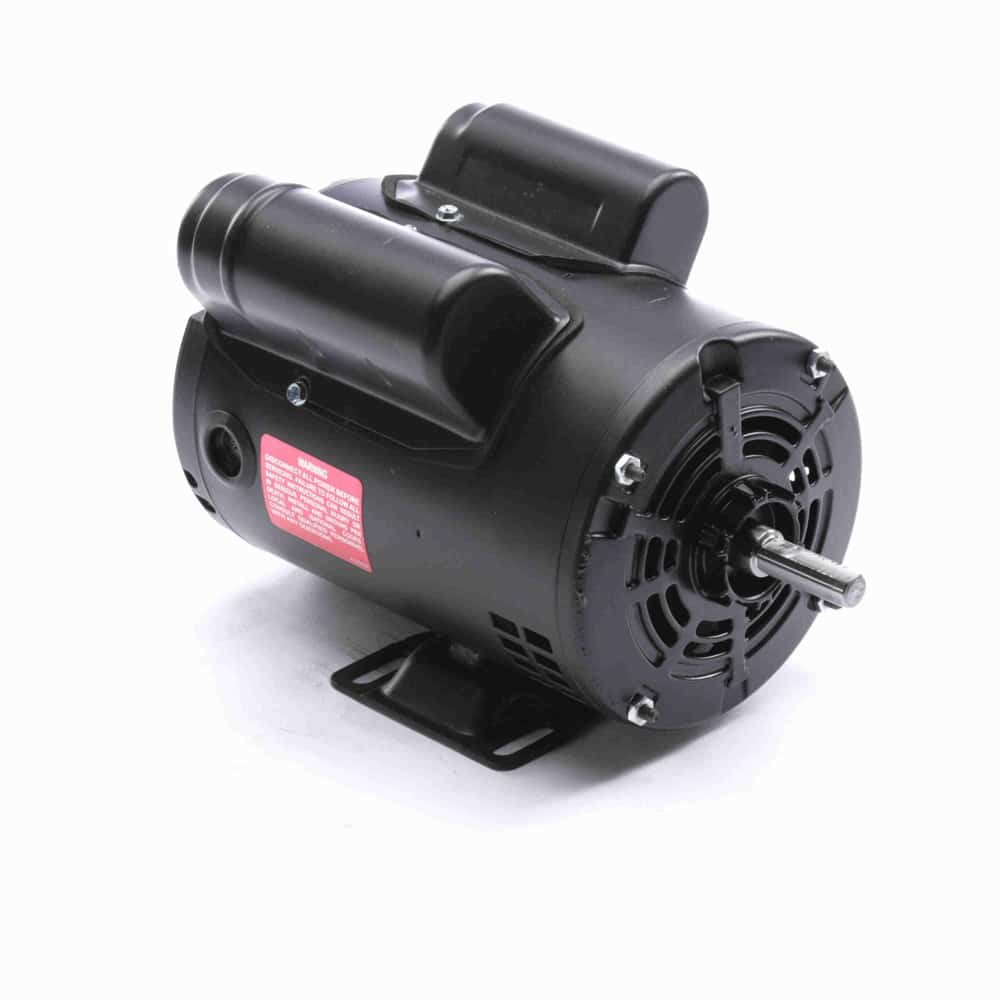

1/3HP 1PH 5.6″ 4P ODP 1725 115/230V
Mfr # C109LES | Wright’s # CEN C109LES
1/3HP 1-Phase General Purpose Motor, 1 Phase, 48 Frame, 1725 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
C109LES
Wright's #
CEN C109LES
Country of Origin
MEX
Specifications
C Dim
10.59"
Electrical Type
Capacitor Start Capacitor Run
Enclosure
ODP
Frame
48
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
3.8/1.9
Rated Voltage
115/230
Rotation
Reversible Counterclockwise
RPM
1725
Service Factor
1.35
Shaft Diameter
0.5"
Speed
1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Premium efficiency promotes improved reliability.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
1/3HP 1-Phase General Purpose Motor, 1 Phase, 48 Frame, 1725 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/230V, ODP Enclosure
