Century

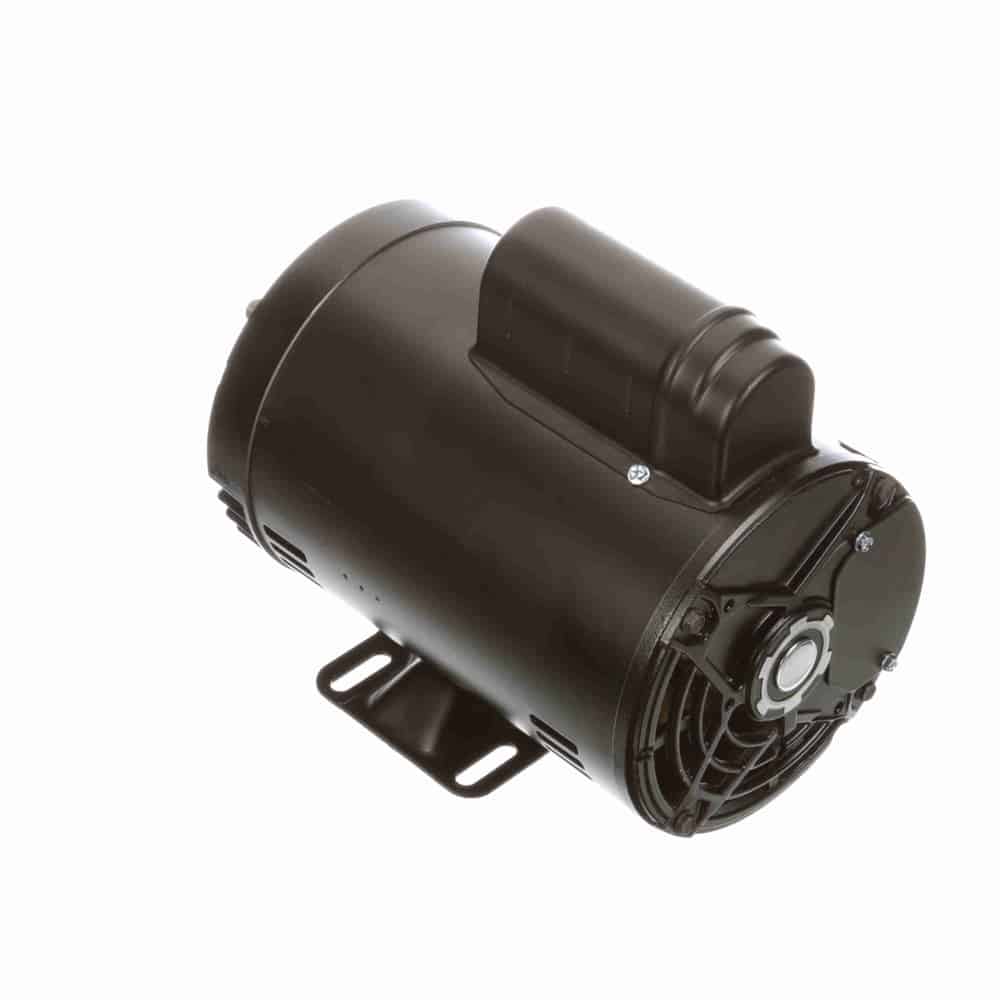

1HP 1PH 56J 4P ODP 1725 115/230V AOL
Mfr # C055V1 | Wright’s # CEN C055V1
1HP Centrifugal Pump Motor, 1 Phase, 56J Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
C055V1
Wright's #
CEN C055V1
Country of Origin
MEX
Specifications
C Dim
12.52"
Electrical Type
Capacitor Start Induction Run
Enclosure
ODP
Full Load Efficiency
70
Frame
56J
Frequency
60 Hz
HP
1 HP
HP2
1 HP
Insulation Class
B
kW
0.75kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
45632
Rated Voltage
115/230
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1.25
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Double sealed ball bearings mechanically locked on shaft end.
Continuous duty cycle design allows maximum operation at the rated power specifications.
Class F insulation(as noted) protects motor for a maximum temperature rating.
1HP Centrifugal Pump Motor, 1 Phase, 56J Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, ODP Enclosure
