Century

1/2HP 1PH 56Z 8P TEAO 850 115/230V AOL BM

Mfr # C048 | Wright’s # CEN C048

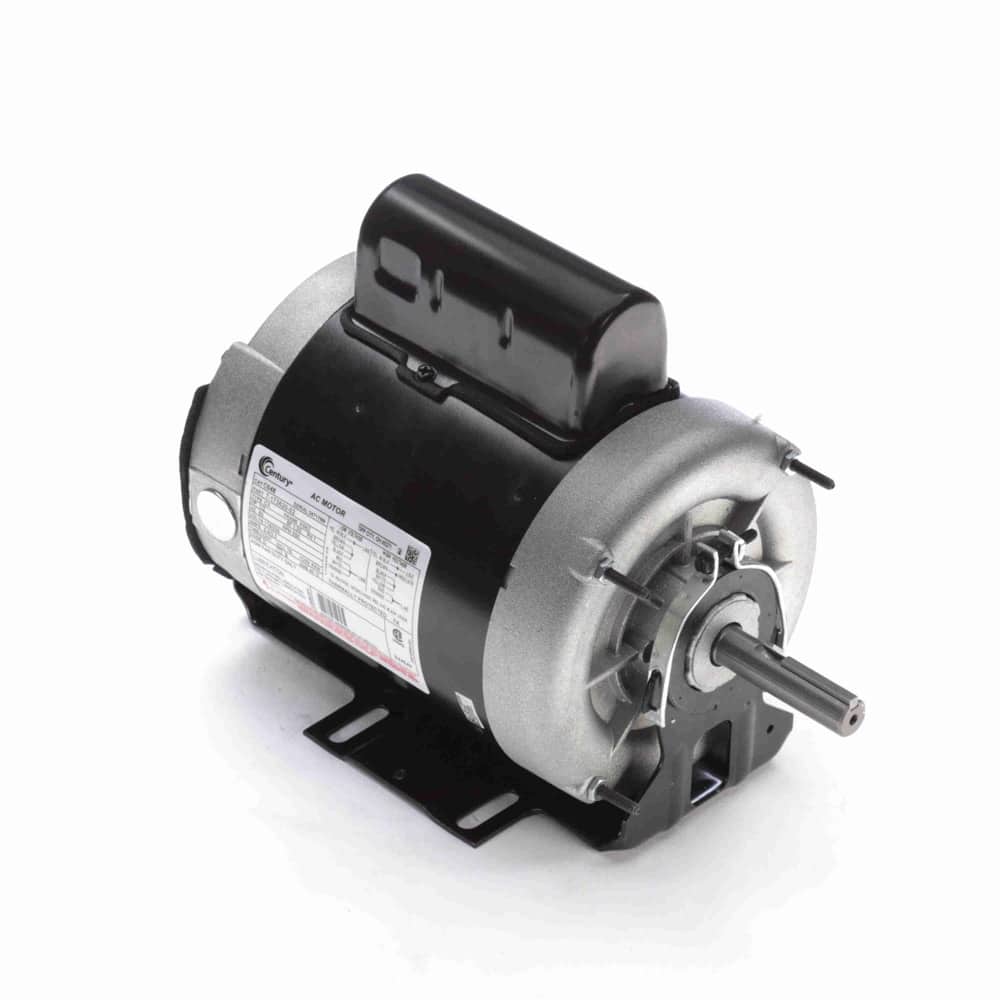

1/2HP Direct Drive Fan Motor, 1 Phase, 56Z Frame, 850 RPM, 1 Speed, Permanent Split Capacitor, Single Or Dual Voltage, 115/230V, TEAO Enclosure

2 in stock

Sign in to access special pricing and availability.
x

$551.49

Product Information

Brand Century
Mfr # C048
Wright's # CEN C048
Country of Origin MEX

Specifications

C Dim 12.06"
Electrical Type Permanent Split Capacitor, Single Or Dual Voltage
Enclosure TEAO
Frame 56Z
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 8
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 6.6/3.3
Rated Voltage 115/230
Rotation Reversible Counterclockwise
RPM 850
Service Factor 1
Shaft Diameter 0.625"
Speed 850
Starting Method

Description

Automatic thermal protection prevents overheating.
Class B insulation protects motor for a maximum temperature rating.
Double sealed bearing construction extends the lifetime of the motor.
Totally enclosed air over, fully gasketed design.

1/2HP Direct Drive Fan Motor, 1 Phase, 56Z Frame, 850 RPM, 1 Speed, Permanent Split Capacitor, Single Or Dual Voltage, 115/230V, TEAO Enclosure
