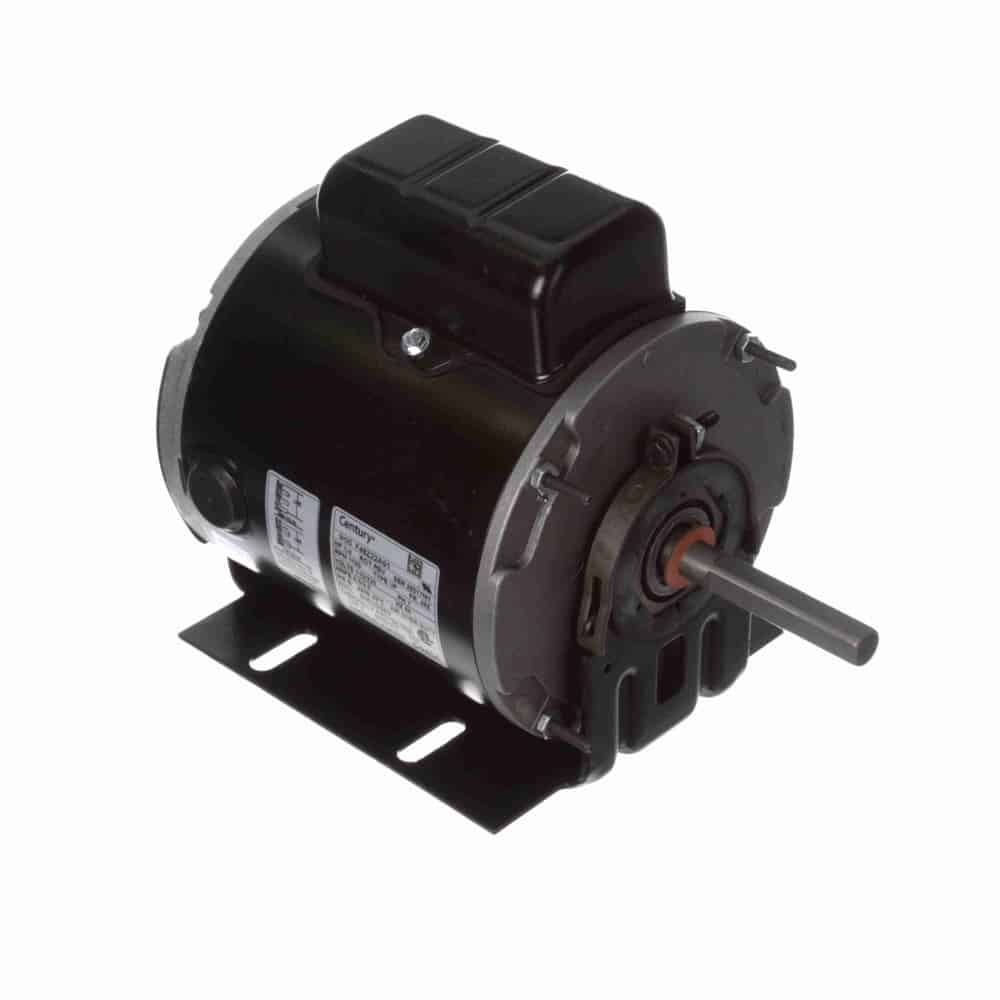

1/4HP PSC 48Z 6P TEAO 1100 115/230V 6uF-inc AOL BM
Century

1/4HP PSC 48Z 6P TEAO 1100 115/230V 6uF-inc AOL BM

Mfr # C045A | Wright’s # CEN C045A

1/4HP Direct Drive Fan Motor, 1 Phase, 48Z Frame, 1100 RPM, 1 Speed, Permanent Split Capacitor, 115/230V, TEAO Enclosure

Contact Us For Pricing

Product Information

Brand Century
Mfr # C045A
Wright's # CEN C045A
Country of Origin MEX

Specifications

C Dim 9.77"
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Z
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
kW 0.19kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 4.0/2.0
Rated Voltage 115/230
Rotation Reversible
RPM 1100
Service Factor 1
Shaft Diameter 0.5"
Speed 1100
Starting Method

Description

Farm / AG Direct Drive Fan Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 6 Mfd-370 Volts (Supplied with Motor)
Thermal Protection: Automatic
Totally Enclosed Air Over, Fully Gasketed
Class B Insulation, 40°C Ambient
Ball Bearings, Double Sealed
1/2″ Diameter Shaft with Double Flat
Resilient Base, Extended Studs Shaft End

1/4HP Direct Drive Fan Motor, 1 Phase, 48Z Frame, 1100 RPM, 1 Speed, Permanent Split Capacitor, 115/230V, TEAO Enclosure
