Century

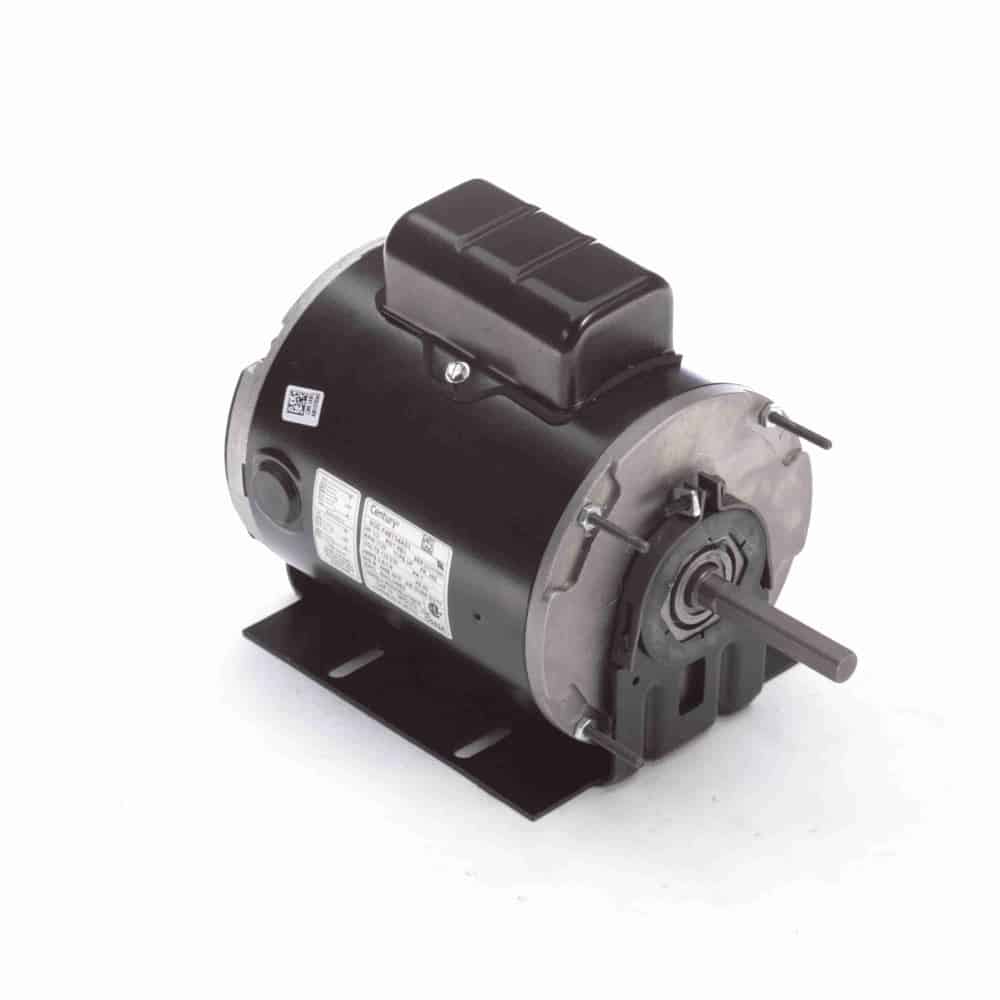

1/3HP PSC 48Z 4P TEAO 1725 115/230V 10uF-inc AOL BM
Mfr # C043A | Wright’s # CEN C043A
1/3HP Direct Drive Fan Motor, 1 Phase, 48Z Frame, 1725 RPM, 1 Speed, Permanent Split Capacitor, 115/230V, TEAO Enclosure
$330.51
Product Information
Brand
Century
Mfr #
C043A
Wright's #
CEN C043A
Country of Origin
MEX
Specifications
C Dim
10.09"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Z
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
3.6/1.8
Rated Voltage
115/230
Rotation
Reversible
RPM
1725
Service Factor
1
Shaft Diameter
0.5"
Speed
1725
Starting Method
Description
Farm / AG Direct Drive Fan Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Supplied with Motor)
Thermal Protection: Automatic
Totally Enclosed Air Over, Fully Gasketed
Class B Insulation, 40°C Ambient
Ball Bearings, Double Sealed
1/2″ Diameter Shaft with Double Flat
Resilient Base, Extended Studs Shaft End
1/3HP Direct Drive Fan Motor, 1 Phase, 48Z Frame, 1725 RPM, 1 Speed, Permanent Split Capacitor, 115/230V, TEAO Enclosure
