Century
1/2HP PSC 48Z 8P TEAO 825 115/230V 30uF-inc AOL BM
Mfr # C039A | Wright’s # CEN C039A

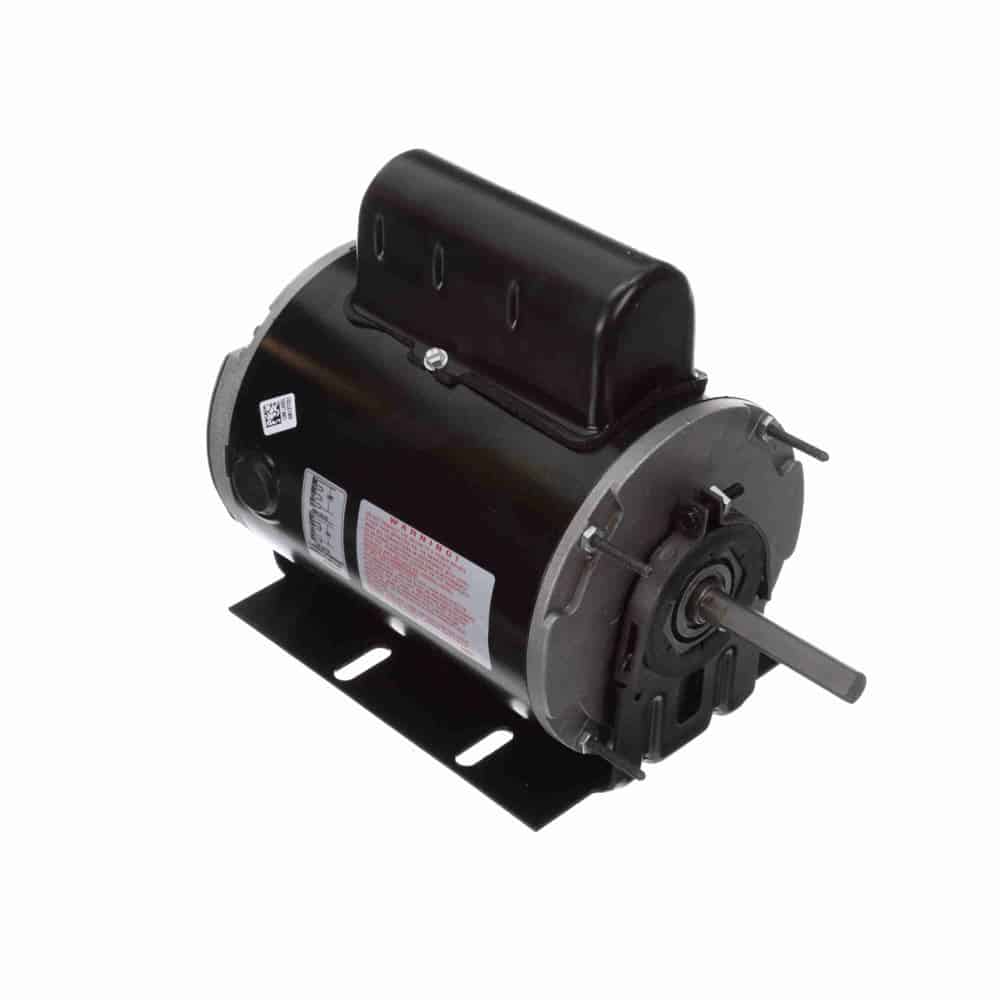

1/2HP Direct Drive Fan Motor, 1 Phase, 48Z Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 115/230V, TEAO Enclosure
$408.68
Product Information
Brand
Century
Mfr #
C039A
Wright's #
CEN C039A
Country of Origin
IND
Specifications
C Dim
10.5"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Full Load Efficiency
64.5
Frame
48Z
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
8
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
7.1/3.6
Rated Voltage
115/230
Rotation
Reversible
RPM
825
Service Factor
1
Shaft Diameter
0.5"
Speed
825
Starting Method
Description
Farm / AG Direct Drive Fan Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 30 Mfd-370 Volts (Supplied with Motor)
Thermal Protection: Automatic
Totally Enclosed Air Over, Fully Gasketed
Class B Insulation, 40°C Ambient
Ball Bearings, Double Sealed
1/2″ Diameter Shaft with Double Flat
Resilient Base, Extended Studs Shaft End
1/2HP Direct Drive Fan Motor, 1 Phase, 48Z Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 115/230V, TEAO Enclosure
