Century
1-1/8″ STACK ShP OAO 3000 CCWSE 240V C-Frame OBSO
Mfr # C01329 | Wright’s # CEN C01329

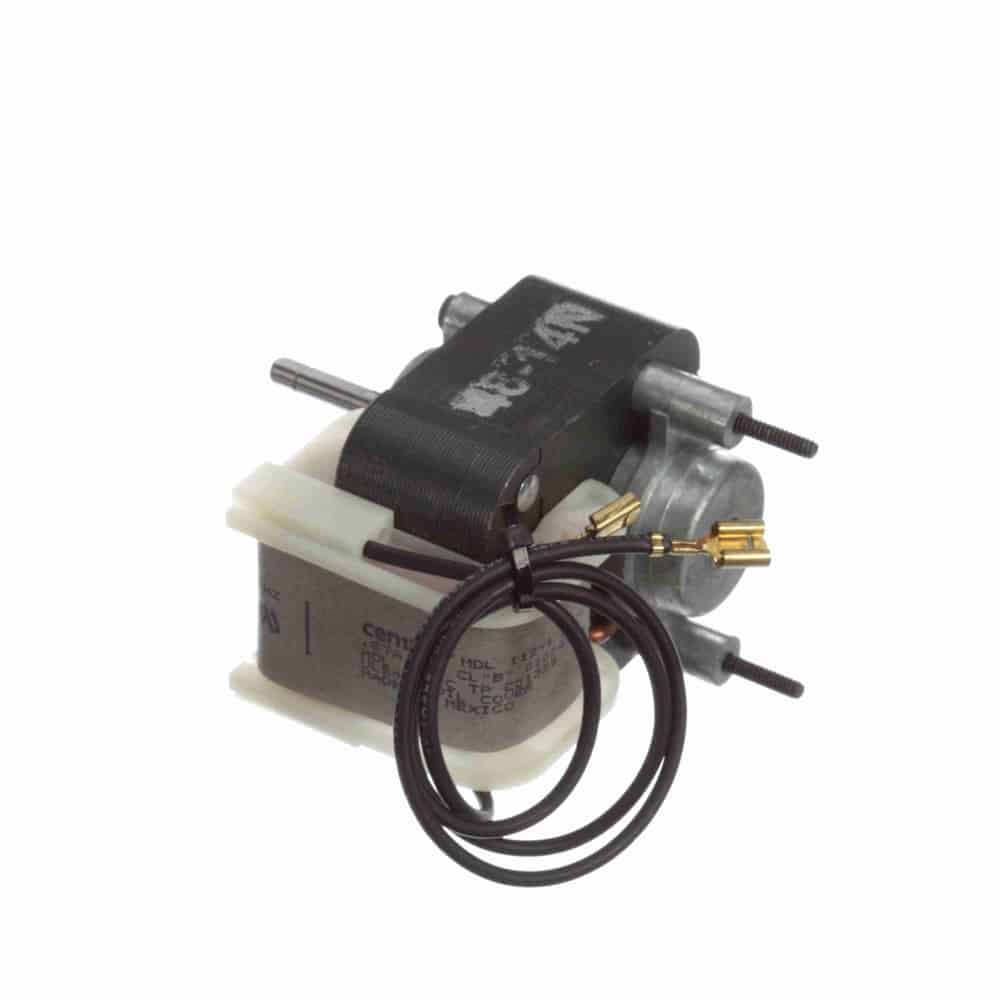

1-1/8″ STACK C-Frame/Skeleton Motor, 1 Phase, 3000 RPM, 1 Speed, Shaded Pole, 240V, OAO Enclosure
$62.88
Product Information
Brand
Century
Mfr #
C01329
Wright's #
CEN C01329
Country of Origin
MEX
Specifications
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
C-FRAME
Frequency
60 Hz
HP2
1-1/8" STACK HP
Insulation Class
B
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
0.67
Rated Voltage
240
Rotation
Counterclockwise
RPM
3000
Service Factor
1
Shaft Diameter
0.217"
Speed
3000
Starting Method
Description
Heating – Refrigeration – Ventilating Motor
C-Frame
Shaded Pole
Thermally Protected
Open Air Over
Class B Insulation
Sleeve Bearing
.217″ Diameter Shaft with Flatm.75″ Leads with AMP Terminals
Extended Studs Opposite Shaft End
1-1/8″ STACK C-Frame/Skeleton Motor, 1 Phase, 3000 RPM, 1 Speed, Shaded Pole, 240V, OAO Enclosure
