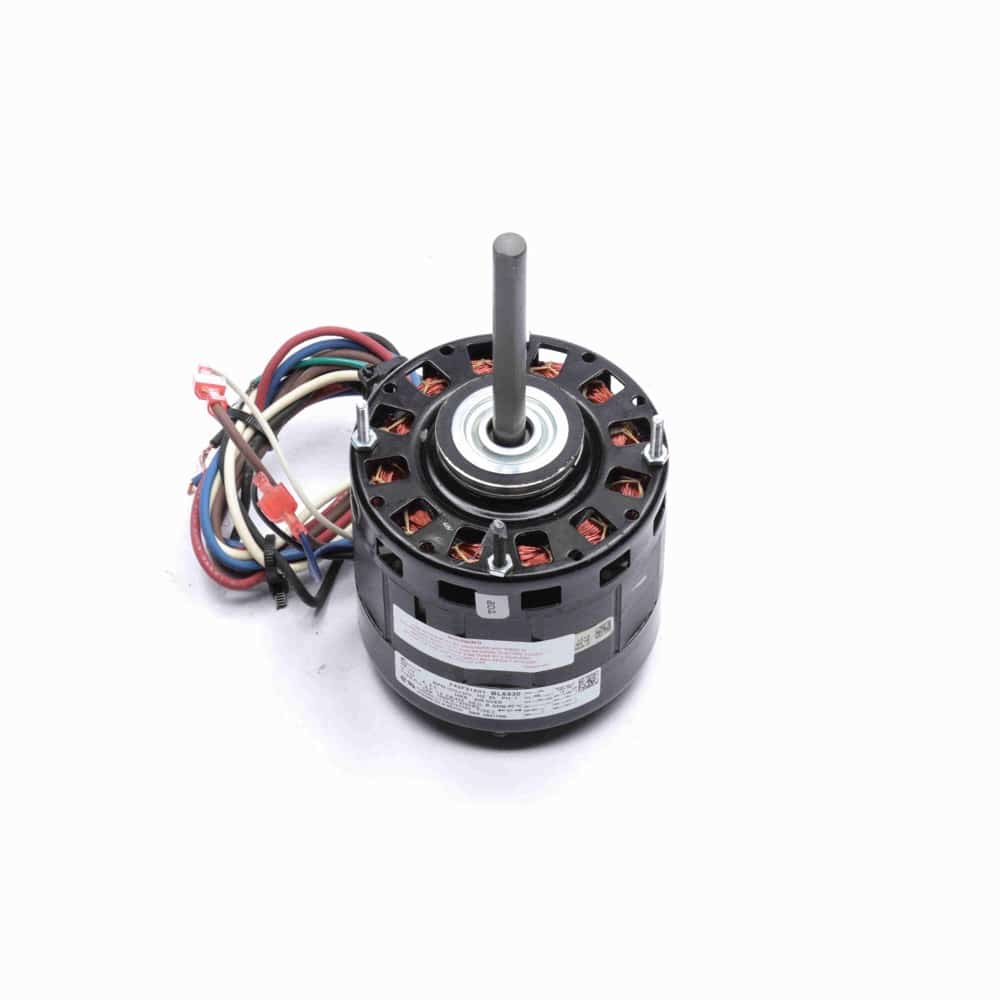

1/3HP PSC 42Y TE 3spd 1075 115V 15uF BM
Century

1/3HP PSC 42Y TE 3spd 1075 115V 15uF BM

Mfr # BL6530 | Wright’s # CEN BL6530

1/3HP Fan & Blower Motor, 1 Phase, 42Y Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 115V, TEAO Enclosure

Contact Us For Pricing

Product Information

Brand Century
Mfr # BL6530
Wright's # CEN BL6530

Specifications

C Dim 9.29"
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 42Y
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Max Ambient 40°C
Number of Poles 6
Number of Speeds 3
Overload Protection Automatic
Phase 1
Rated Current 6.3
Rated Voltage 115
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5"
Speed 1075
Starting Method

Description

Furnace Blower – Air Handler – Fan Coil – Air Conditioning Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Shaft End End-Frame and Shaft End Shell, Lead End End-Frame Half Open and Lead End Shell Half Open, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЄ” Leads
Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mounting (Belly Band Not Included)

1/3HP Fan & Blower Motor, 1 Phase, 42Y Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 115V, TEAO Enclosure
