Century
1HP PSC 48Y ODP 3spd 1075 115V 20uF BM
Mfr # BDL1106 | Wright’s # CEN BDL1106

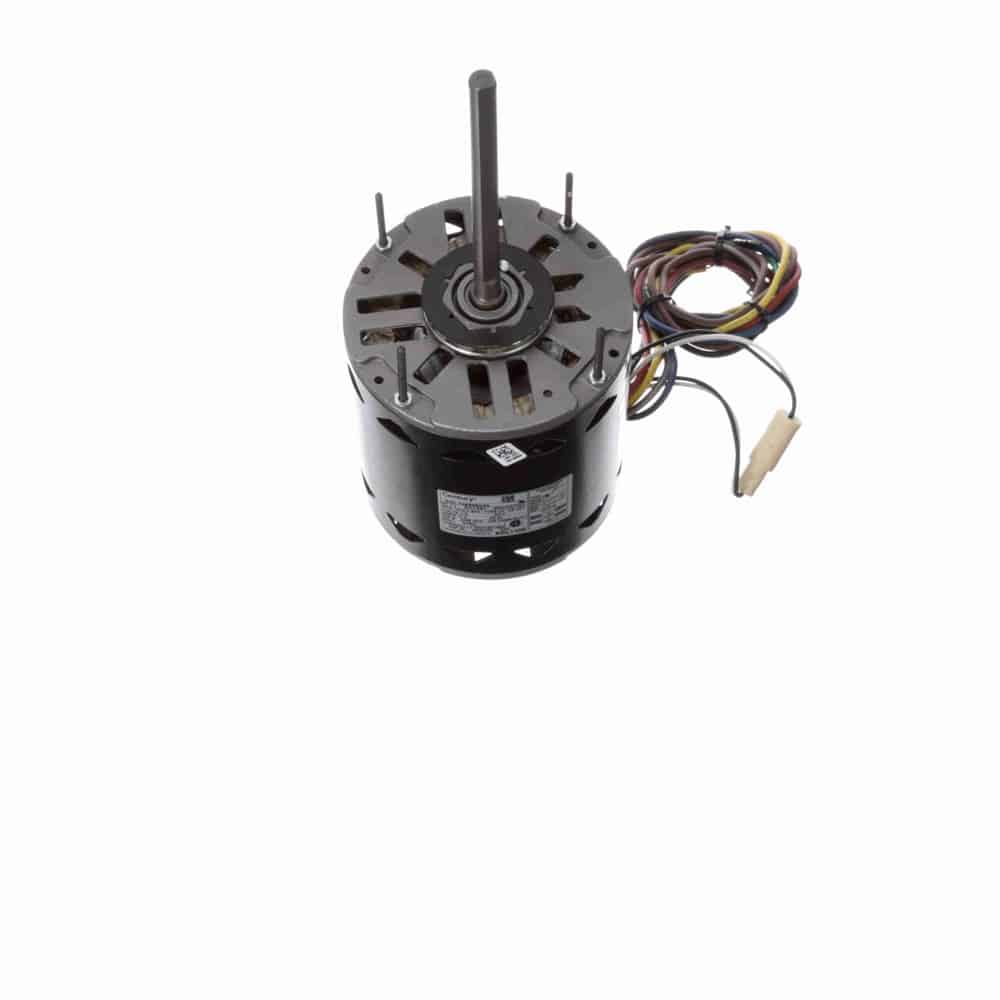

1HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 115V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
BDL1106
Wright's #
CEN BDL1106
Country of Origin
IND
Specifications
C Dim
12.74"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Full Load Efficiency
60.6
Frame
48Y
Frequency
60 Hz
HP
1 HP
HP2
1 HP
Insulation Class
B
kW
0.75kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
11.6
Rated Voltage
115
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
Direct Drive Fan & Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 20 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatЃ” Leads
Extended Studs Shaft End, Resilient Ring Mounting
1HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 115V, ODP Enclosure
