Century

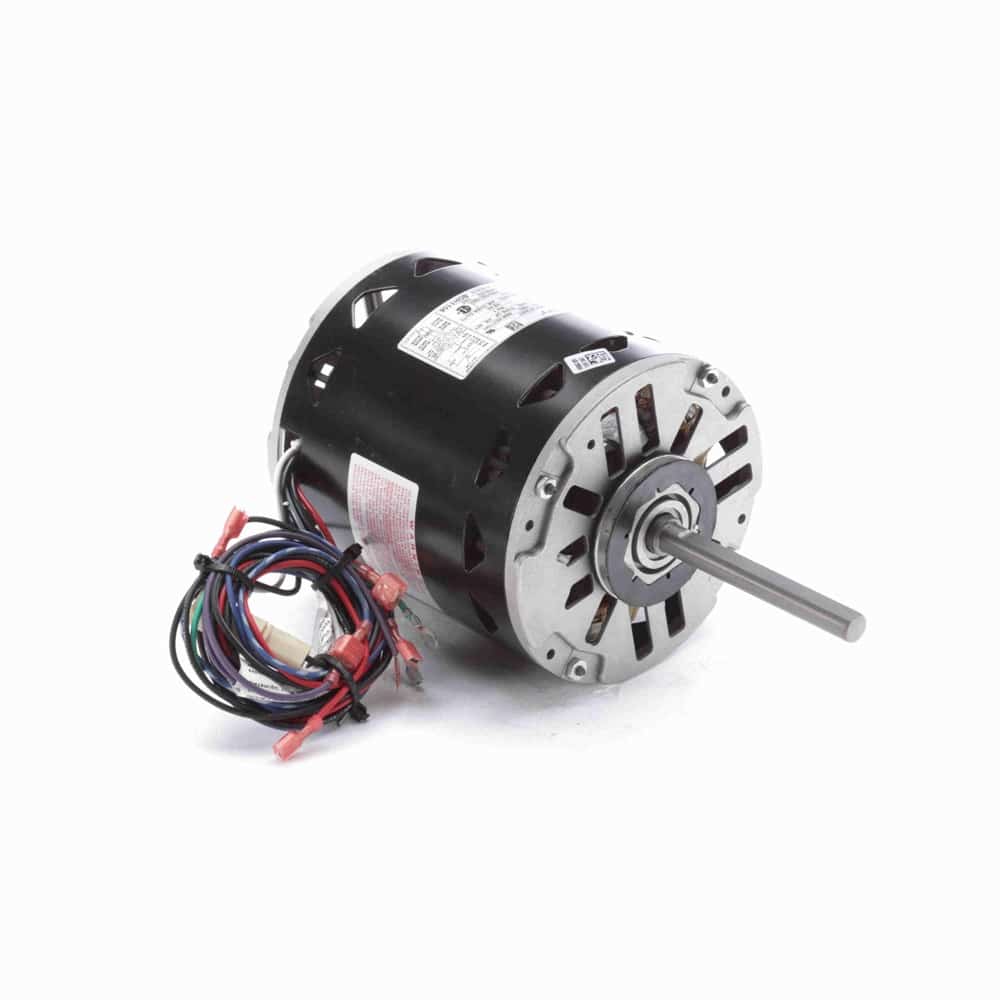

1HP PSC 48Y ODP 3spd 1100 460V 15uF BM
Mfr # BDH1106 | Wright’s # CEN BDH1106
1HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1100 RPM, 3 Speed, Permanent Split Capacitor, 460V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
BDH1106
Wright's #
CEN BDH1106
Country of Origin
IND
Specifications
C Dim
11.09"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Frame
48Y
Frequency
60 Hz
HP
1 HP
HP2
1 HP
Insulation Class
B
kW
0.75kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
3.2
Rated Voltage
460
Rotation
Reversible
RPM
1100
Service Factor
1
Shaft Diameter
0.5"
Speed
1100
Starting Method
Description
Direct Drive Fan & Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatЌ” Leads with Quick Connect Terminals
Resilient Ring Mounting
1HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1100 RPM, 3 Speed, Permanent Split Capacitor, 460V, ODP Enclosure
