Century
1/2HP PSC 48Y TE 2spd 1625 460V 5uF-inc BM
Mfr # BDH1054 | Wright’s # CEN BDH1054

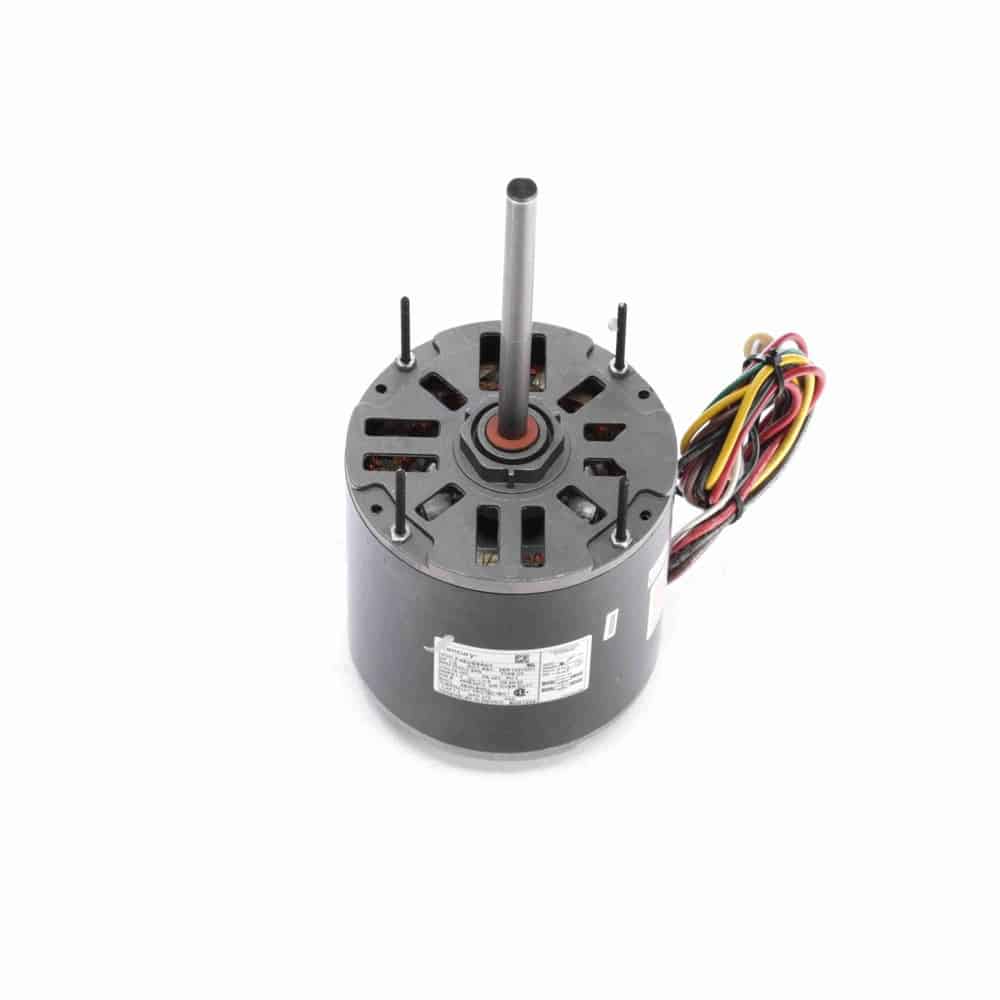

1/2HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1625 RPM, 2 Speed, Permanent Split Capacitor, 460V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
BDH1054
Wright's #
CEN BDH1054
Specifications
C Dim
12.24"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
4
Number of Speeds
2
Overload Protection
Automatic
Phase
1
Rated Current
1.4
Rated Voltage
460
Rotation
Reversible
RPM
1625
Service Factor
1
Shaft Diameter
0.5"
Speed
1625
Starting Method
Description
Direct Drive Fan & Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Semi-Enclosed Air Over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatЃ” Leads
Extended Studs Shaft End, Hex Mounting Hubs on Both Ends (Resilient Rings Not Included)
1/2HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1625 RPM, 2 Speed, Permanent Split Capacitor, 460V, TEAO Enclosure
