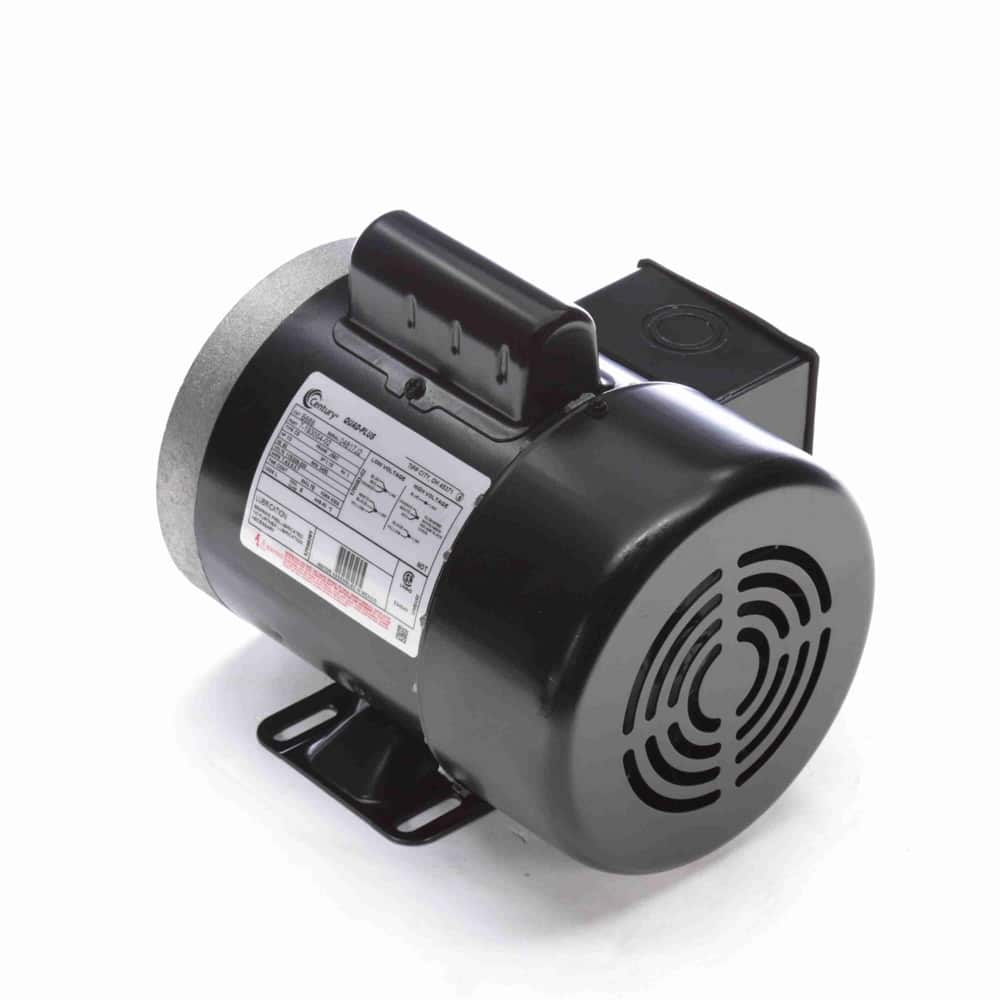

1/2HP 1PH 56C 2P TEFC 3450 115/208-230V
Century

1/2HP 1PH 56C 2P TEFC 3450 115/208-230V

Mfr # B888 | Wright’s # CEN B888

1/2HP 1-Phase General Purpose Motor, 1 Phase, 56C Frame, 3450 RPM, 1 Speed, Capacitor Start, Induction Run, Single Or Dual Voltage, 115/208-230V, TEFC Enclosure

1 in stock

Sign in to access special pricing and availability.
x

$386.91

Product Information

Brand Century
Mfr # B888
Wright's # CEN B888
Country of Origin MEX

Specifications

C Dim 11.34"
Electrical Type Capacitor Start, Induction Run, Single Or Dual Voltage
Enclosure TEFC
Frame 56C
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 7.4/3.5-3.7
Rated Voltage 115/208-230
Rotation Reversible Counterclockwise
RPM 3450
Service Factor 1.15
Shaft Diameter 0.625"
Speed 3450
Starting Method

Description

UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Continuous duty cycle design allows maximum operation at the rated power. specifications
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Capacitor start design optimizes motor torque and efficiency performance.

1/2HP 1-Phase General Purpose Motor, 1 Phase, 56C Frame, 3450 RPM, 1 Speed, Capacitor Start, Induction Run, Single Or Dual Voltage, 115/208-230V, TEFC Enclosure

Documents

Data Sheet
