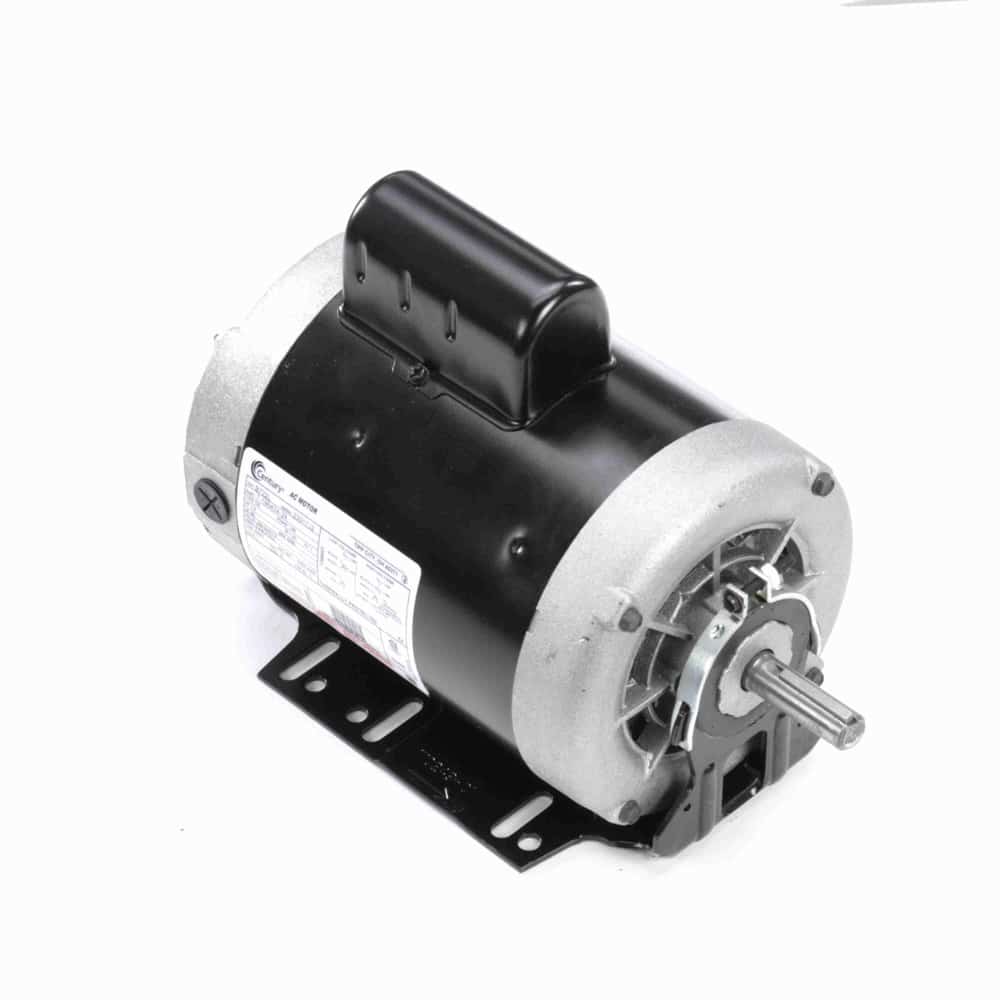

1.5HP 1PH 56 ODP 3450 115/208-230V BM
Century

1.5HP 1PH 56 ODP 3450 115/208-230V BM

Mfr # B722L | Wright’s # CEN B722L

1.5HP Fan & Blower Motor, 1 Phase, 56 Frame, 3450 RPM, 1 Speed, Capacitor Start, Induction Run, Single Or Dual Voltage, 115/208-230V, ODP Enclosure

$564.11

Product Information

Brand Century
Mfr # B722L
Wright's # CEN B722L
Country of Origin MEX

Specifications

C Dim 12.19"
Electrical Type Capacitor Start, Induction Run, Single Or Dual Voltage
Enclosure ODP
Frame 56
Frequency 60 Hz
HP 1.5 HP
HP2 1.5 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 8.6-8.0/16.0
Rated Voltage 115/208-230
Rotation Reversible Counterclockwise
RPM 3450
Service Factor 1.2
Shaft Diameter 0.625"
Speed 3450
Starting Method

Description

Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.

1.5HP Fan & Blower Motor, 1 Phase, 56 Frame, 3450 RPM, 1 Speed, Capacitor Start, Induction Run, Single Or Dual Voltage, 115/208-230V, ODP Enclosure

Documents

Data Sheet
