Century
1HP 1PH 56 2P TEFC 3450 115/208-230V Farm
Mfr # B674 | Wright’s # CEN B674

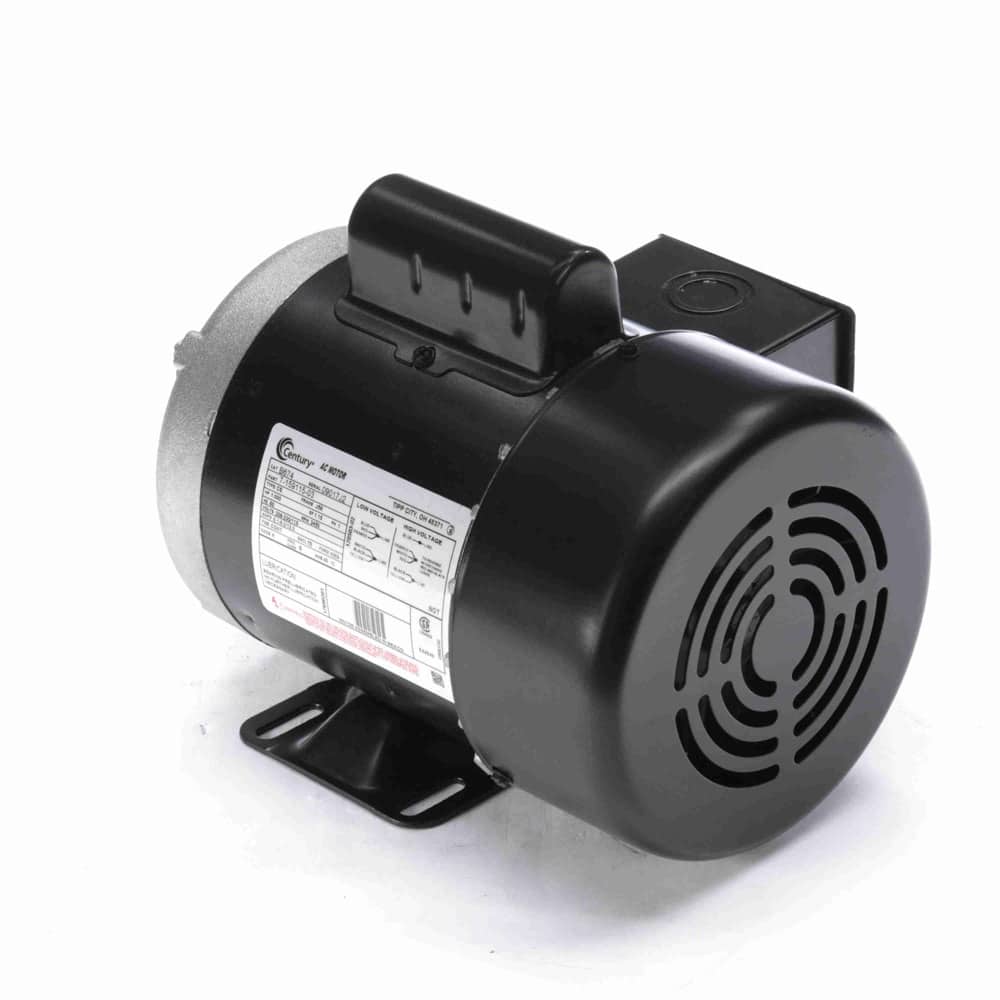

1HP Farm Duty Motor, 1 Phase, 56 Frame, 3450 RPM, 1 Speed, Capacitor Start, Induction Run, Single Or Dual Voltage, 115/208-230V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
B674
Wright's #
CEN B674
Country of Origin
MEX
Specifications
C Dim
12.24"
Electrical Type
Capacitor Start, Induction Run, Single Or Dual Voltage
Enclosure
TEFC
Frame
56
Frequency
60 Hz
HP
1 HP
HP2
1 HP
Insulation Class
B
kW
0.75kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
6.1-6.0/12.0
Rated Voltage
115/208-230
Rotation
Reversible Counterclockwise
RPM
3450
Service Factor
1.15
Shaft Diameter
0.625"
Speed
3450
Starting Method
Description
Double-shielded bearings extend the service life of the motor.
EXXON® Polyrex® EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C).
Shaft flingers protect bearings from damage caused by dirt and rain.
Condensation drains allow the motor to expel and drain built-up moisture.
1HP Farm Duty Motor, 1 Phase, 56 Frame, 3450 RPM, 1 Speed, Capacitor Start, Induction Run, Single Or Dual Voltage, 115/208-230V, TEFC Enclosure
