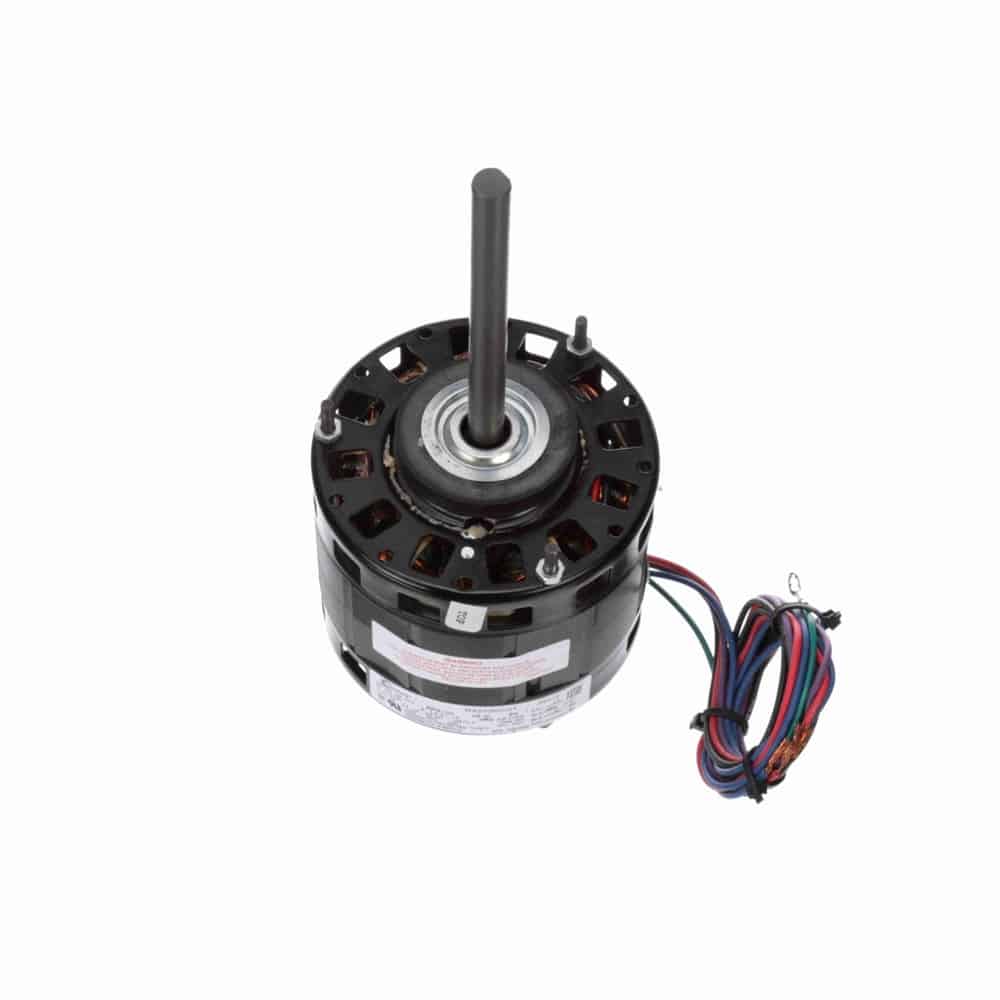

1/5HP ShP 42Y OAO 3spd 1050 CWSE 208-230V BM
Century

1/5HP ShP 42Y OAO 3spd 1050 CWSE 208-230V BM

Mfr # B6415 | Wright’s # CEN B6415

1/5-1/8-1/10HP Fan & Blower Motor, 1 Phase, 42Y Frame, 1050 RPM, 3 Speed, Shaded Pole, 208-230V, OAO Enclosure

Contact Us For Pricing

Product Information

Brand Century
Mfr # B6415
Wright's # CEN B6415
Country of Origin MEX

Specifications

C Dim 9.38"
Electrical Type Shaded Pole
Enclosure OAO
Frame 42Y
Frequency 60 Hz
HP 0.2 HP
HP2 1/5-1/8-1/10 HP
Insulation Class A
kW 0.15kW
Max Ambient 40°C
Number of Poles 6
Number of Speeds 3
Overload Protection Automatic
Phase 1
Rated Current 3.2,2.1,1.5
Rated Voltage 208-230
Rotation Counterclockwise Lead End
RPM 1050
Service Factor 1
Shaft Diameter 0.5"
Speed 1050
Starting Method

Description

Furnace Blower – Attic Ventilator – Air Handler – Fan Coil Motor
5″ Diameter – 42 Frame
Shaded Pole
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЌ” Leads
Extended Studs Shaft End, Resilient Ring Mounting

1/5-1/8-1/10HP Fan & Blower Motor, 1 Phase, 42Y Frame, 1050 RPM, 3 Speed, Shaded Pole, 208-230V, OAO Enclosure
