Century

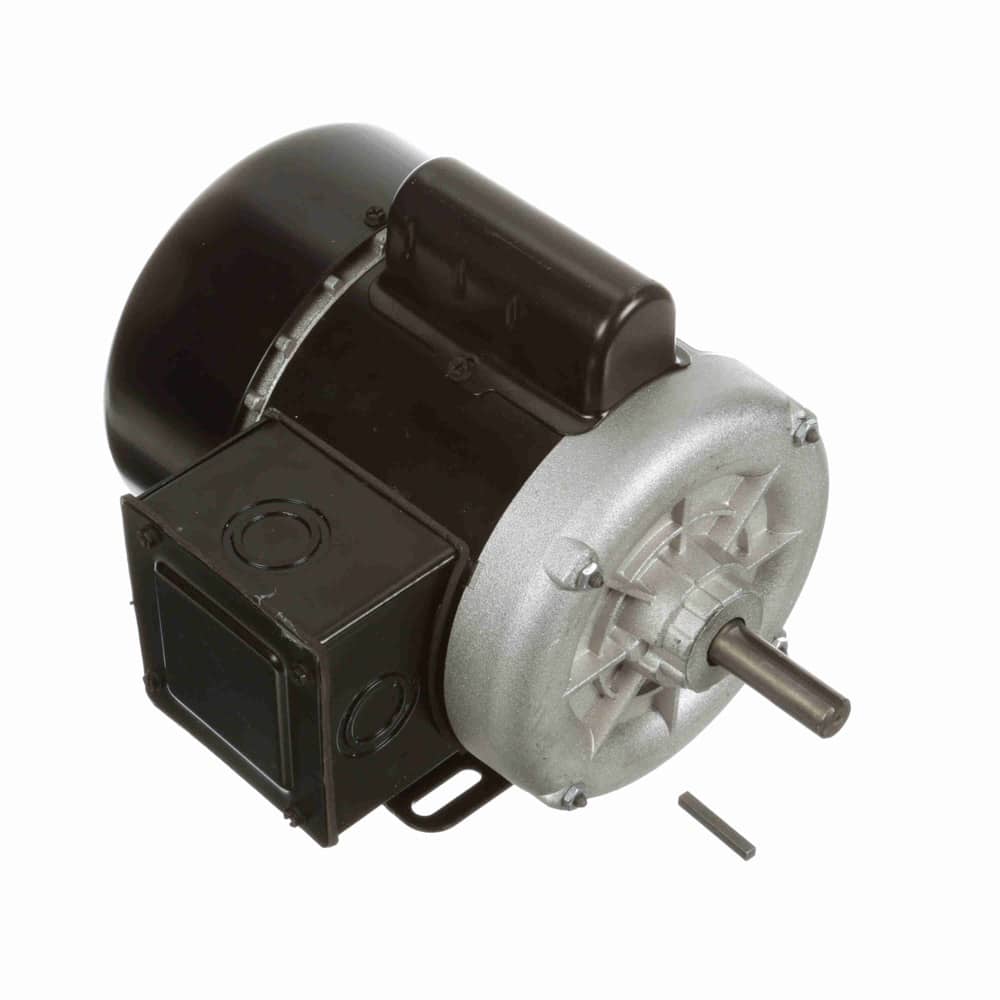

1/2HP 1PH 56 2P TEFC 3450 115/208-230V Farm
Mfr # B621 | Wright’s # CEN B621
1/2HP Farm Duty Motor, 1 Phase, 56 Frame, 3450 RPM, 1 Speed, Capacitor Start, Induction Run, Single Or Dual Voltage, 115/208-230V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand Century
Mfr # B621
Wright's # CEN B621
Country of Origin MEX
Specifications
C Dim 11.24"
Electrical Type Capacitor Start, Induction Run, Single Or Dual Voltage
Enclosure TEFC
Frame 56
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 7.4/3.7-3.7
Rated Voltage 115/208-230
Rotation Reversible Counterclockwise
RPM 3450
Service Factor 1.15
Shaft Diameter 0.625"
Speed 3450
Starting Method
Description
Double-shielded bearings extend the service life of the motor.
EXXON® Polyrex® EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C).
Shaft flingers protect bearings from damage caused by dirt and rain.
Condensation drains allow the motor to expel and drain built-up moisture.
1/2HP Farm Duty Motor, 1 Phase, 56 Frame, 3450 RPM, 1 Speed, Capacitor Start, Induction Run, Single Or Dual Voltage, 115/208-230V, TEFC Enclosure
