Century
1/2HP 1PH 56J 2P ODP 3450 115/230V AOL
Mfr # B606DC | Wright’s # CEN B606DC

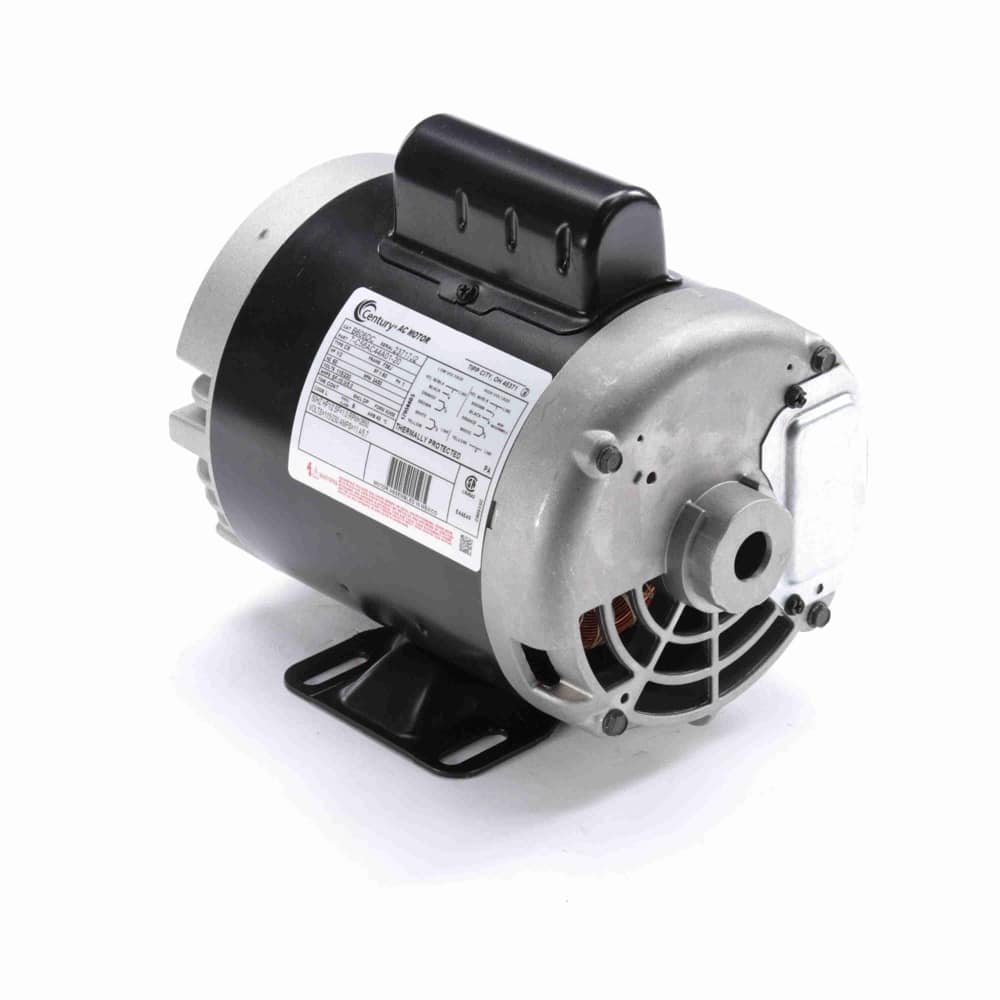

1/2HP Centrifugal Pump Motor, 1 Phase, 56J Frame, 3450 RPM, Speed, Capacitor Start, Induction Run, Single Or Dual Voltage, 115/230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
B606DC
Wright's #
CEN B606DC
Country of Origin
MEX
Specifications
C Dim
11.3"
Electrical Type
Capacitor Start, Induction Run, Single Or Dual Voltage
Enclosure
ODP
Frame
56J
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
2
Overload Protection
Thermally Protected
Phase
1
Rated Current
SF 10.0/5.0
Rated Voltage
115/230
Rotation
Clockwise
RPM
3450
Service Factor
1.6
Shaft Diameter
0.625"
Speed
3450
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Double sealed ball bearings mechanically locked on shaft end.
Continuous duty cycle design allows maximum operation at the rated power specifications.
Class F insulation(as noted) protects motor for a maximum temperature rating.
1/2HP Centrifugal Pump Motor, 1 Phase, 56J Frame, 3450 RPM, Speed, Capacitor Start, Induction Run, Single Or Dual Voltage, 115/230V, ODP Enclosure
