Century

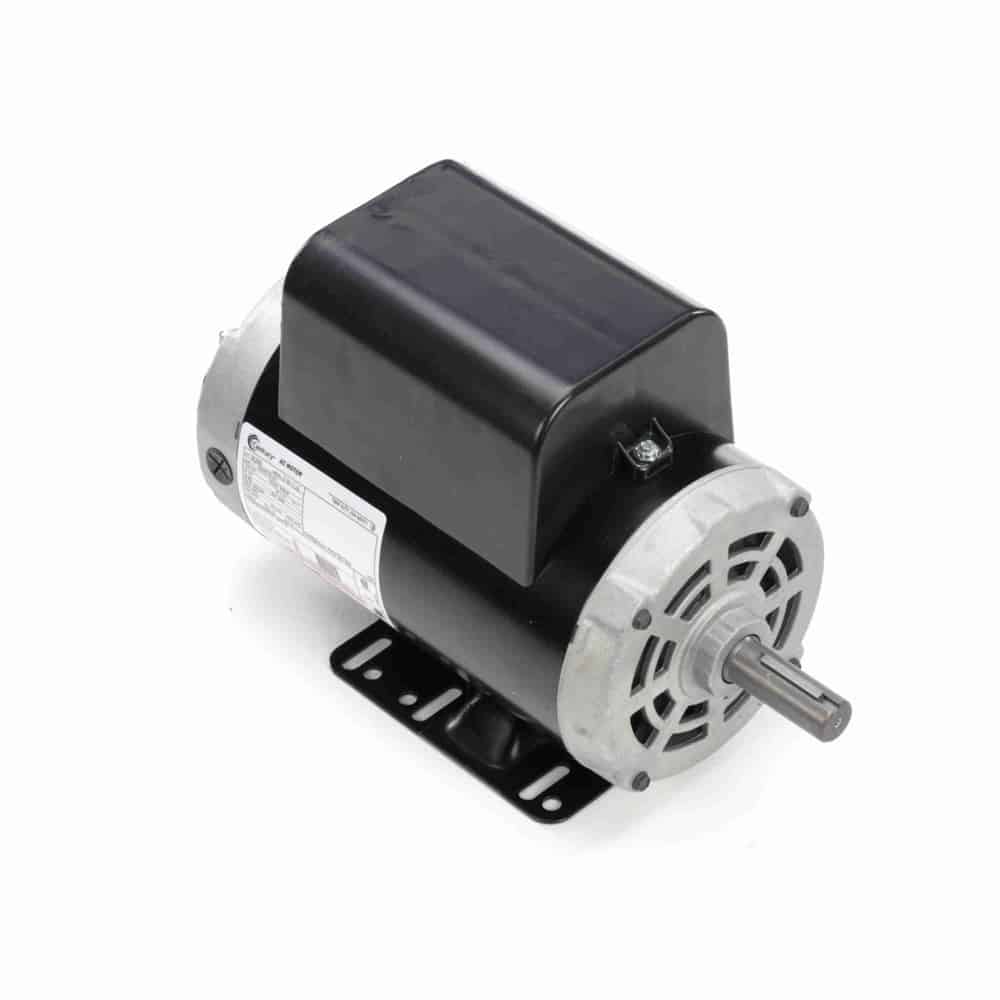

5HP 1PH 56HZ 2P ODP 3450 208-230V MOL CM
Mfr # B386 | Wright’s # CEN B386
5HP Compressor Motor, 1 Phase, 56HZ Frame, 3450 RPM, 1 Speed, Capacitor Start, Capacitor Run, Single Or Dual Voltage, 208-230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
B386
Wright's #
CEN B386
Country of Origin
MEX
Specifications
C Dim
14.56"
Electrical Type
Capacitor Start, Capacitor Run, Single Or Dual Voltage
Enclosure
ODP
Frame
56HZ
Frequency
60 Hz
HP
5 HP
HP2
5 HP
Insulation Class
B
kW
3.7kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Manual
Phase
1
Rated Current
22
Rated Voltage
208-230
Rotation
Clockwise
RPM
3450
Service Factor
1.15
Shaft Diameter
0.875"
Speed
3450
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use.
High starting torque on start-up, to achieve a higher starting load required in air compressor applications.
Capacitor start or capacitor run for low-amp, high-efficiency, as noted.
Heavy-duty construction ensures motor durability.
5HP Compressor Motor, 1 Phase, 56HZ Frame, 3450 RPM, 1 Speed, Capacitor Start, Capacitor Run, Single Or Dual Voltage, 208-230V, ODP Enclosure
