Century

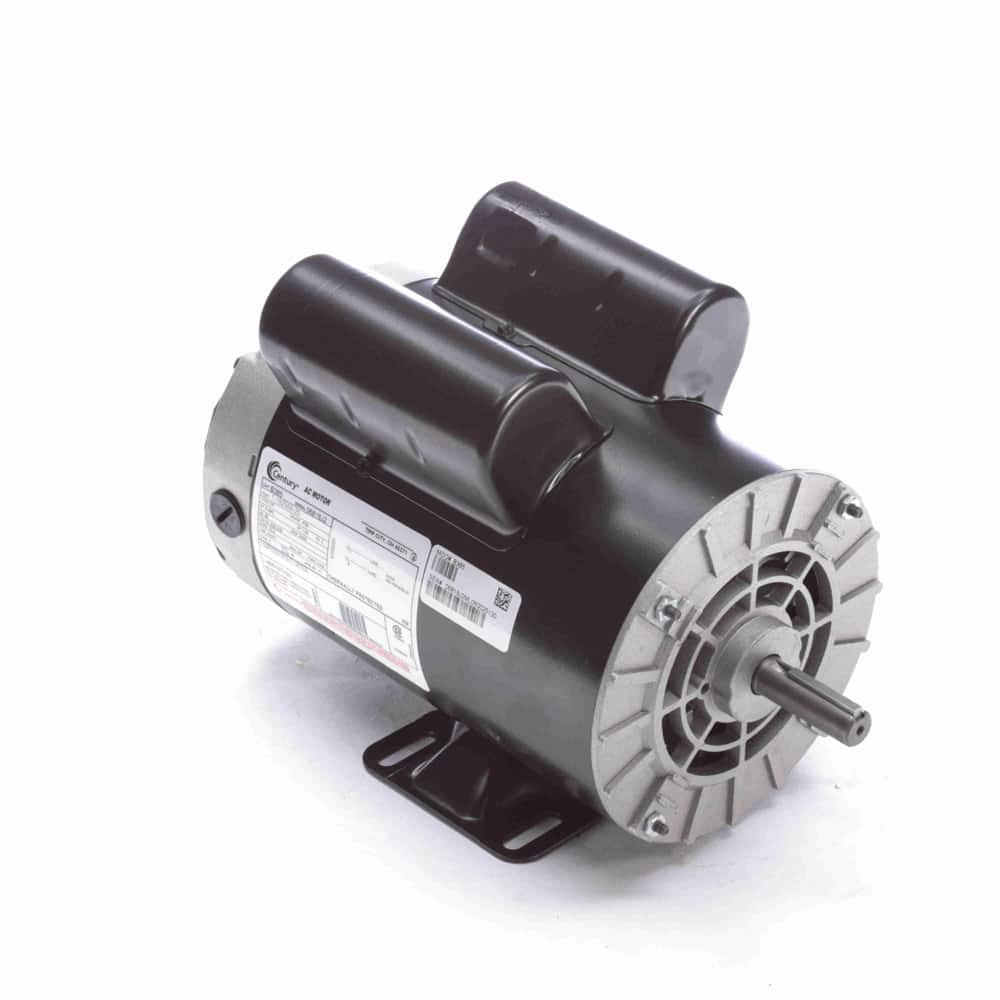

5HP SPL 1PH 56 2P ODP 3600 208-230V MOL CM
Mfr # B385 | Wright’s # CEN B385
5 SPLHP Compressor Motor, 1 Phase, 56 Frame, 3450 RPM, 1 Speed, Capacitor Start, Capacitor Run, Single Or Dual Voltage, 208-230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
B385
Wright's #
CEN B385
Country of Origin
MEX
Specifications
C Dim
12.59"
Electrical Type
Capacitor Start, Capacitor Run, Single Or Dual Voltage
Enclosure
ODP
Frame
56
Frequency
60 Hz
HP
5 HP
HP2
5 SPL HP
Insulation Class
B
kW
3.7kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Manual
Phase
1
Rated Current
15
Rated Voltage
208-230
Rotation
Clockwise
RPM
3450
Service Factor
1
Shaft Diameter
0.625"
Speed
3600
Starting Method
