Century

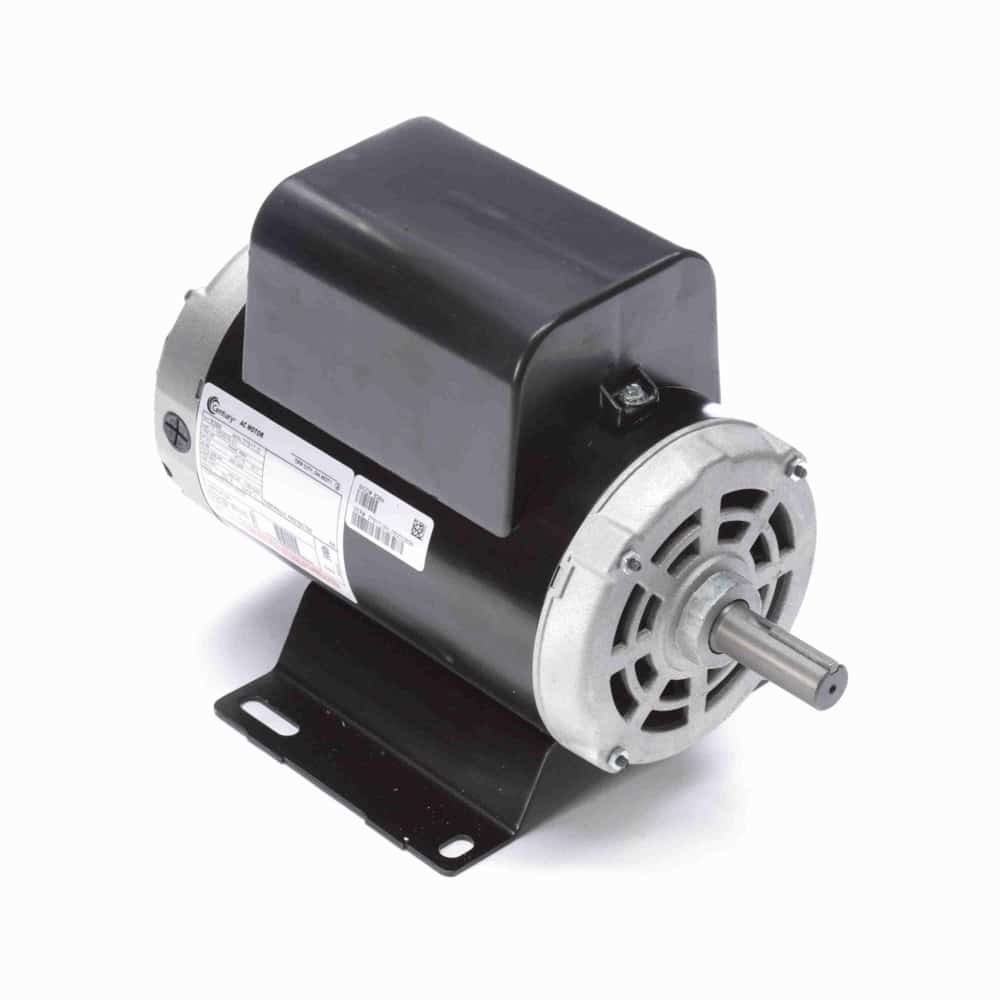

5HP 1PH 56Y 2P ODP 3600 208-230V MOL CM
Mfr # B384 | Wright’s # CEN B384
5HP Compressor Motor, 1 Phase, 56Y Frame, 3450 RPM, 1 Speed, Capacitor Start, Capacitor Run, Single Or Dual Voltage, 208-230V, ODP Enclosure
$802.06
Product Information
Brand Century
Mfr # B384
Wright's # CEN B384
Country of Origin MEX
Specifications
C Dim 14.56"
Electrical Type Capacitor Start, Capacitor Run, Single Or Dual Voltage
Enclosure ODP
Frame 56Y
Frequency 60 Hz
HP 5 HP
HP2 5 HP
Insulation Class B
kW 3.7kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Manual
Phase 1
Rated Current 22
Rated Voltage 208-230
Rotation Clockwise
RPM 3450
Service Factor 1.15
Shaft Diameter 0.875"
Speed 3600
Starting Method
