Century

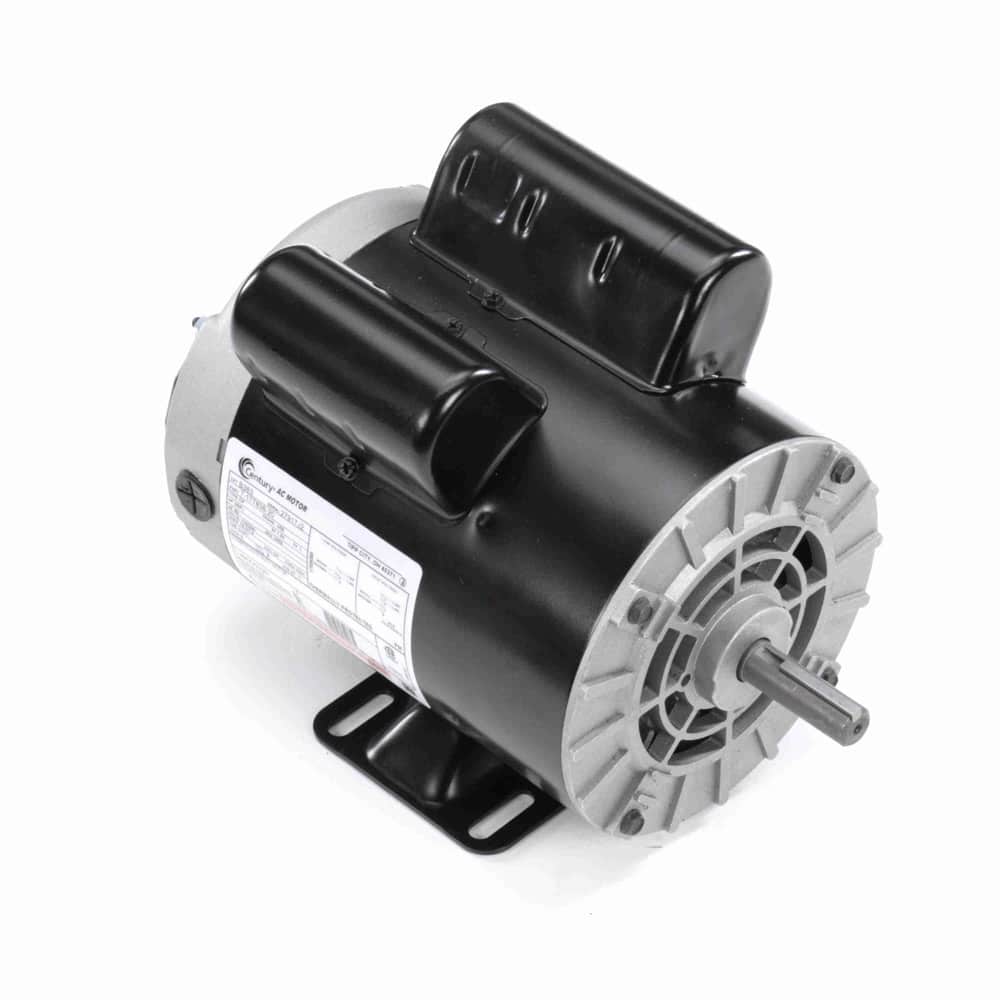

3HP SPL 1PH 56 2P ODP 3450 115/230V MOL CM
Mfr # B383 | Wright’s # CEN B383
3 SPLHP Compressor Motor, 1 Phase, 56 Frame, 3450 RPM, 1 Speed, Capacitor Start, Capacitor Run, Single Or Dual Voltage, 115/230V, ODP Enclosure
$501.72
Product Information
Brand
Century
Mfr #
B383
Wright's #
CEN B383
Country of Origin
MEX
Specifications
C Dim
11.59"
Electrical Type
Capacitor Start, Capacitor Run, Single Or Dual Voltage
Enclosure
ODP
Frame
56
Frequency
60 Hz
HP
3 HP
HP2
3 SPL HP
Insulation Class
B
kW
2.2kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Manual
Phase
1
Rated Current
15.0/7.5
Rated Voltage
115/230
Rotation
Clockwise
RPM
3450
Service Factor
1
Shaft Diameter
0.625"
Speed
3450
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use.
High starting torque on start-up, to achieve a higher starting load required in air compressor applications.
Capacitor start or capacitor run for low-amp, high-efficiency, as noted.
Heavy-duty construction ensures motor durability.
3 SPLHP Compressor Motor, 1 Phase, 56 Frame, 3450 RPM, 1 Speed, Capacitor Start, Capacitor Run, Single Or Dual Voltage, 115/230V, ODP Enclosure
