Century

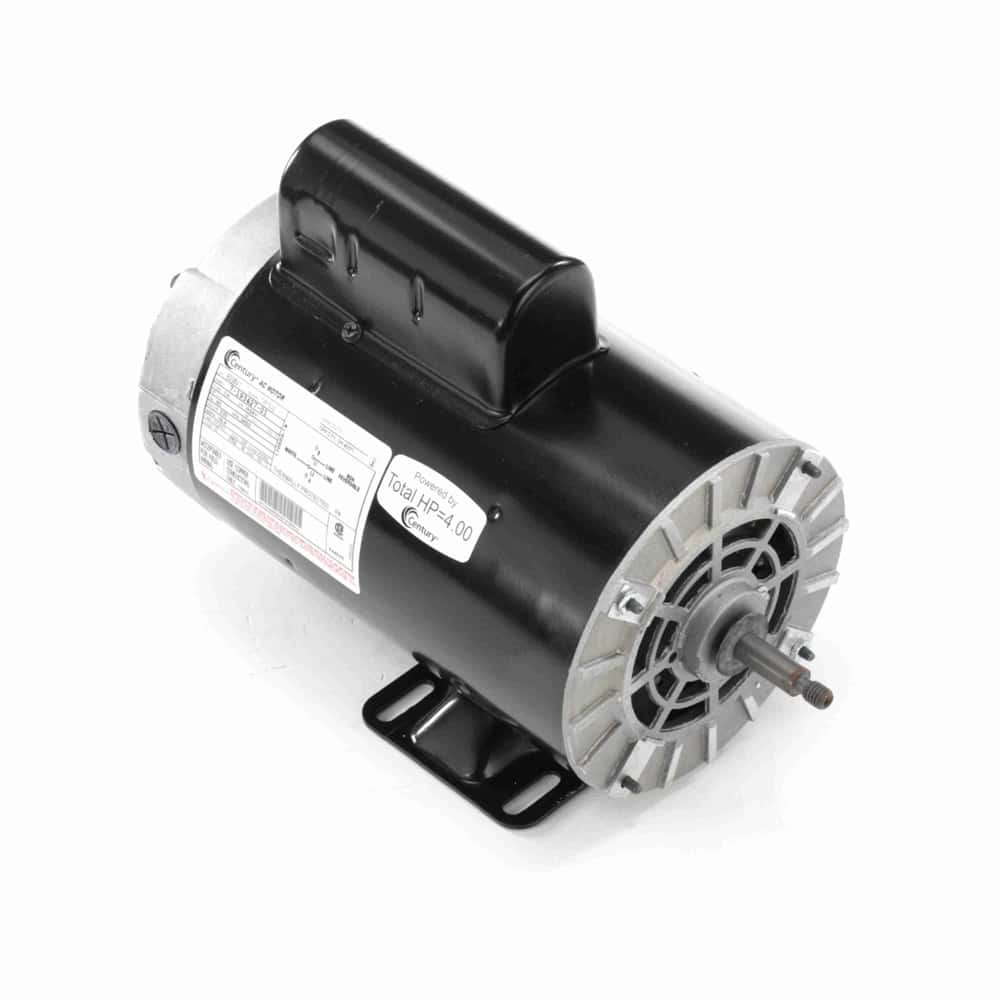

5HP 1PH 56Y 2P ODP 3450 230V AOL UL1081
Mfr # B238V1 | Wright’s # CEN B238V1
5HP Pool & Spa Pump Motor, 1 Phase, 56Y Frame, 3450 RPM, 1 Speed, Permanent Split Capacitor, Single Or Dual Voltage, 230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
B238V1
Wright's #
CEN B238V1
Country of Origin
MEX
Specifications
C Dim
13.37"
Electrical Type
Permanent Split Capacitor, Single Or Dual Voltage
Enclosure
ODP
Frame
56Y
Frequency
60 Hz
HP
5 HP
HP2
5 HP
Insulation Class
B
kW
3.7kW
Material
Rolled Steel
Max Ambient
50°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
16.4
Rated Voltage
230
Rotation
Counterclockwise Pump End
RPM
3450
Service Factor
1
Shaft Diameter
0.5"
Speed
3450
Starting Method
Description
Two Speed
PSC on High Speed
Cap Start/Cap Run on Low Speed
Rigid Base
50°C Ambient
Four Thru Bolts on a 5.812 Bolt Circle
Open Dripproof
5HP Pool & Spa Pump Motor, 1 Phase, 56Y Frame, 3450 RPM, 1 Speed, Permanent Split Capacitor, Single Or Dual Voltage, 230V, ODP Enclosure
