Century

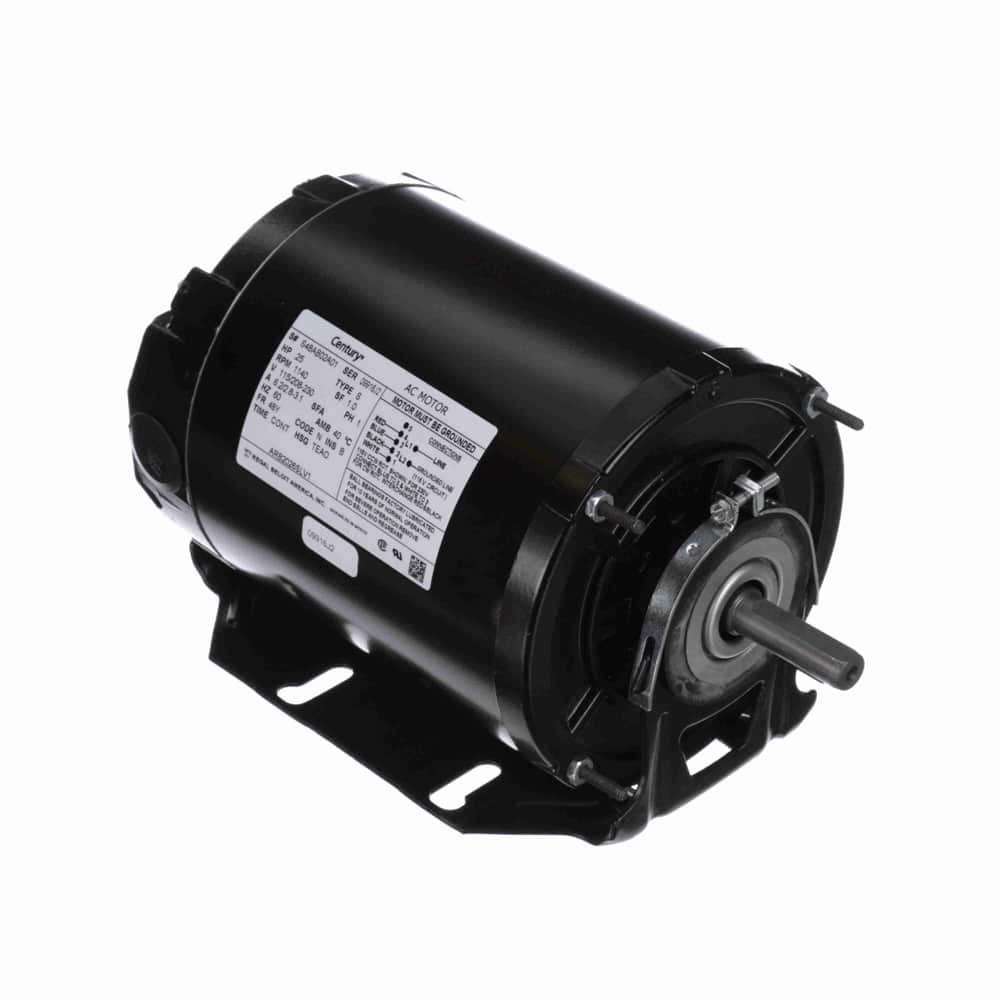

1/4HP 1PH 48Y TE 1140 REV 115/208-230V BM
Mfr # ARB2026SLV1 | Wright’s # CEN ARB2026SLV1
1/4HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1140 RPM, 1 Speed, Split Phase, 115/208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
ARB2026SLV1
Wright's #
CEN ARB2026SLV1
Country of Origin
MEX
Specifications
C Dim
10.15"
Electrical Type
Split Phase
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
6.2/2.8-3.1
Rated Voltage
115/208-230
Rotation
Reversible
RPM
1140
Service Factor
1
Shaft Diameter
0.5"
Speed
1140
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use.
Double-shielded bearings extend the service life of the motor.
Automatic reset thermal protector (as noted) protects against overload.
Moderate starting torque helps reduce fan stresses.
1/4HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1140 RPM, 1 Speed, Split Phase, 115/208-230V, TEAO Enclosure
