Century
1/20HP ShP 3.3″ TEFC 3000 CWSE 115/230V RF
Mfr # 994 | Wright’s # CEN 994

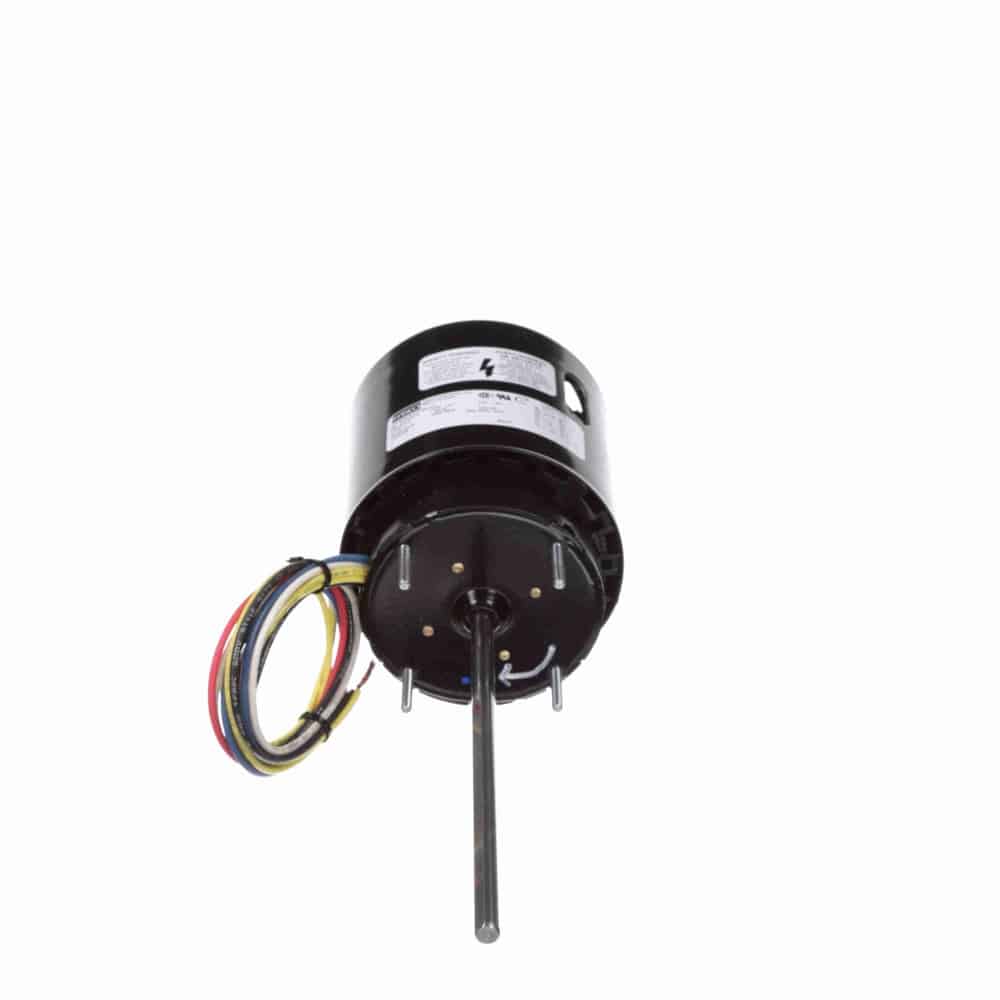

1/20HP Refrigeration Motor, 1 Phase, 3.3 Frame, 3000 RPM, 1 Speed, Shaded Pole, 115/230V, TEFC Enclosure
$156.55
Product Information
Brand
Century
Mfr #
994
Wright's #
CEN 994
Specifications
Electrical Type
Shaded Pole
Enclosure
TEFC
Frame
3.3
Frequency
60 Hz
HP
0.05 HP
HP2
1/20 HP
Insulation Class
B
kW
0.04kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.9/.9
Rated Voltage
115/230
Rotation
Counterclockwise Lead End
RPM
3000
Service Factor
1
Shaft Diameter
0.312"
Speed
3000
Starting Method
Description
Refrigeration Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Totally Enclosed Fan Cooled
Class B Insulation, 40°C Ambient
Ball Bearing
5/16″ Diameter Shaft with FlatϺ” Leads
Extended Studs Shaft End
1/20HP Refrigeration Motor, 1 Phase, 3.3 Frame, 3000 RPM, 1 Speed, Shaded Pole, 115/230V, TEFC Enclosure
