Century
1/4HP PSC 5″ TE 1625 REV 208-230V 5uF CF
Mfr # 9724F | Wright’s # CEN 9724F

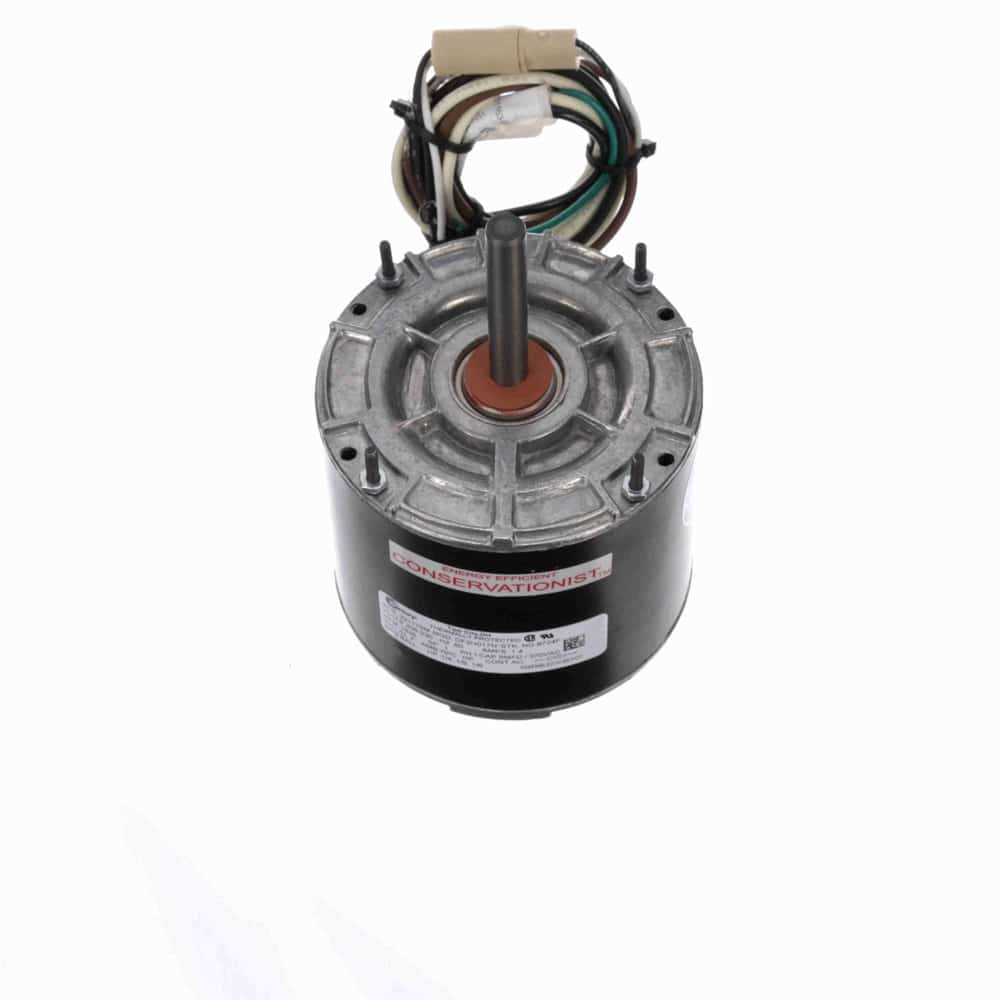

1/4-1/5-1/6HP Condenser Fan Motor, 1 Phase, 42 Frame, 1625 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
$146.38
Product Information
Brand
Century
Sub-Brand
MULTIFIT®
Mfr #
9724F
Wright's #
CEN 9724F
Specifications
C Dim
7.5"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
42
Frequency
60 Hz
HP
0.25 HP
HP2
1/4-1/5-1/6 HP
Insulation Class
F
kW
0.19kW
Material
Rolled Steel
Max Ambient
70°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1.4
Rated Voltage
208-230
Rotation
Reversible
RPM
1625
Service Factor
1
Shaft Diameter
0.5"
Speed
1625
Starting Method
