Century
1/4HP PSC 42Y OAO 3spd 1625 REV 115V 5uF BM
Mfr # 9716 | Wright’s # CEN 9716

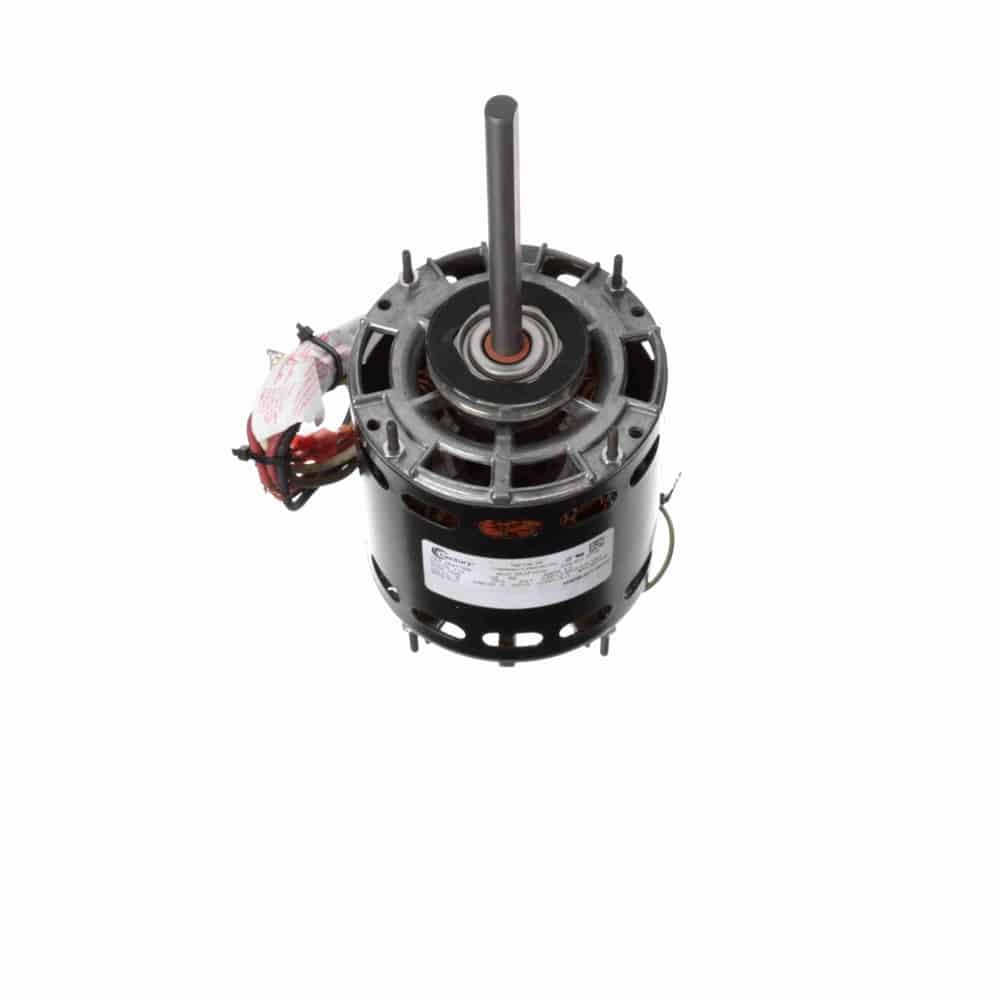

1/4HP Fan & Blower Motor, 1 Phase, 42Y Frame, 1625 RPM, 3 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
$278.74
Product Information
Brand
Century
Mfr #
9716
Wright's #
CEN 9716
Specifications
C Dim
12.44"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
42Y
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
4
Rated Voltage
115
Rotation
Reversible
RPM
1625
Service Factor
1
Shaft Diameter
0.5"
Speed
1625
Starting Method
Description
Furnace Blower – Air Handler – Fan Coil – Air Conditioning Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Flatϵ” Leads
Extended Studs Shaft End and Opposite Shaft End, Resilient Ring Mounting
1/4HP Fan & Blower Motor, 1 Phase, 42Y Frame, 1625 RPM, 3 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
