Century
1/8HP PSC 48Y TE 1550 CWSE 115/208-230V 4uF-inc BM
Mfr # 9704 | Wright’s # CEN 9704

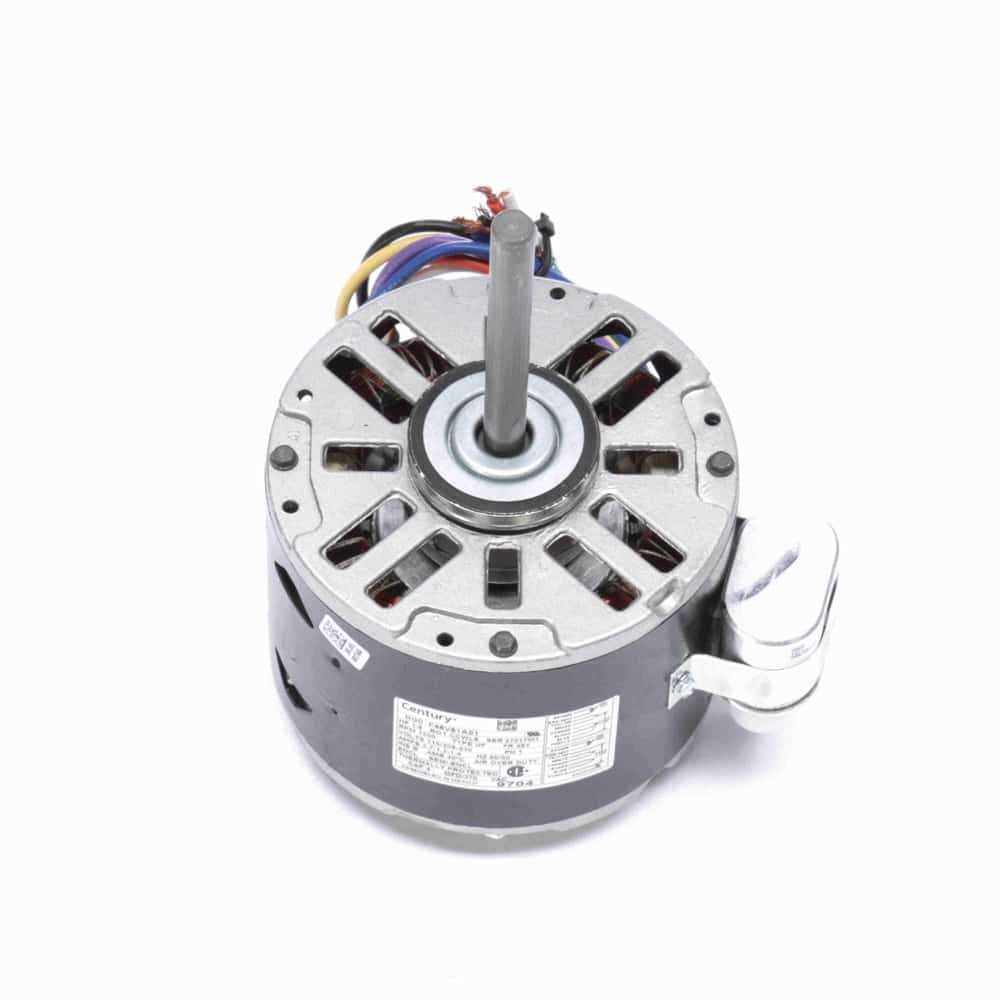

1/8HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1550 RPM, 1 Speed, Permanent Split Capacitor, 115/208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
9704
Wright's #
CEN 9704
Country of Origin
MEX
Specifications
C Dim
9.11"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.13 HP
HP2
1/8 HP
Insulation Class
B
kW
0.1kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
2.7/1.2-1.4
Rated Voltage
115/208-230
Rotation
Counterclockwise Lead End
RPM
1550
Service Factor
1
Shaft Diameter
0.5"
Speed
1550
Starting Method
