Century

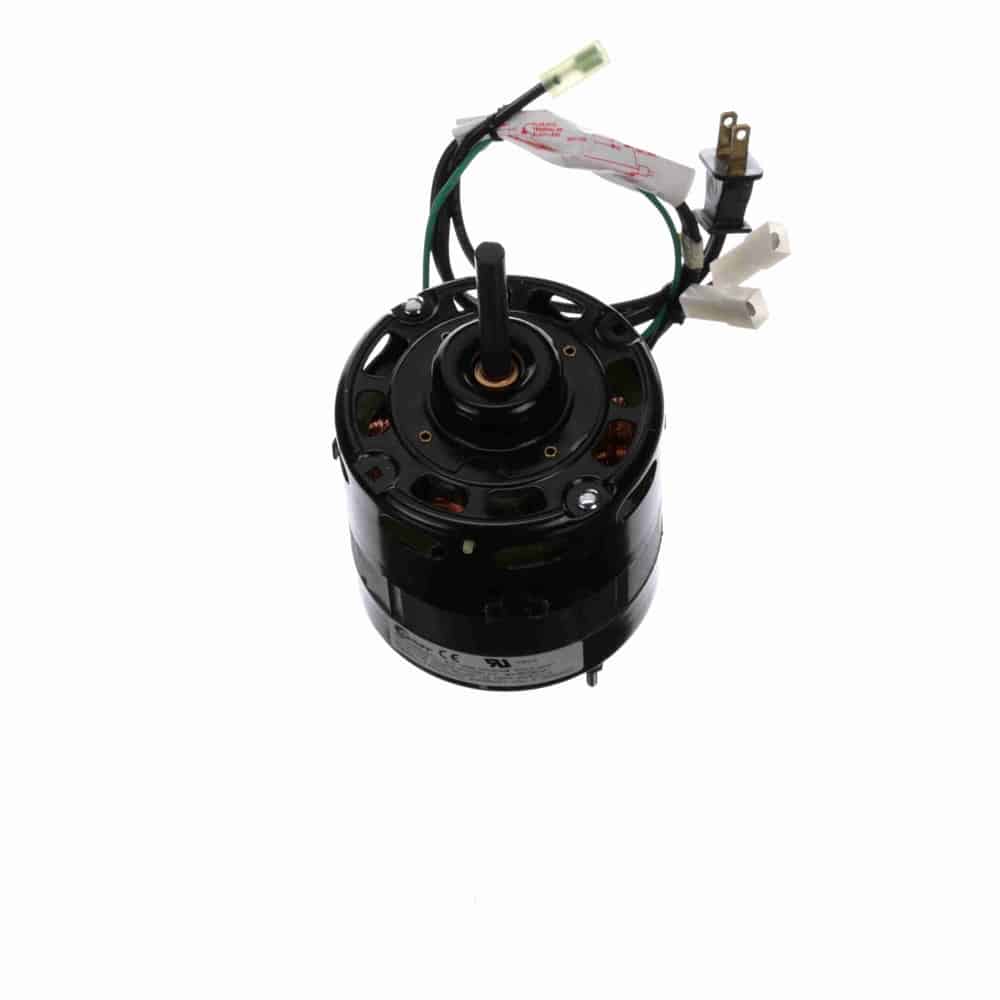

1/12HP ShP 4.4″ OAO 2spd 1050 CWSE 115V OEM
Mfr # 97 | Wright’s # CEN 97
1/12-1/25HP OEM Replacement Motor, 1 Phase, 4.4 Frame, 1050 RPM, 2 Speed, Shaded Pole, 115V, OAO Enclosure
$366.54
Product Information
Brand
Century
Mfr #
97
Wright's #
CEN 97
Country of Origin
GBR
Specifications
C Dim
7.69"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
4.4
Frequency
60 Hz
HP
0.08 HP
HP2
1/12-1/25 HP
Insulation Class
A
kW
0.06kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
2
Overload Protection
Automatic
Phase
1
Rated Current
4.0/1.6
Rated Voltage
115
Rotation
Clockwise Shaft End
RPM
1050
Service Factor
1
Shaft Diameter
0.375"
Speed
1050
Starting Method
Description
OEM Direct Replacement Motor
4.4″ Diameter
Shaded Pole
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
3/8″ Diameter Shaft with Flatϵ” Leads with Molded Plug
Extended Studs Opposite Shaft end
1/12-1/25HP OEM Replacement Motor, 1 Phase, 4.4 Frame, 1050 RPM, 2 Speed, Shaded Pole, 115V, OAO Enclosure
