Century
1/8HP PSC 48Y TE 3spd 1550 CWSE 115V 5uF
Mfr # 9681 | Wright’s # CEN 9681

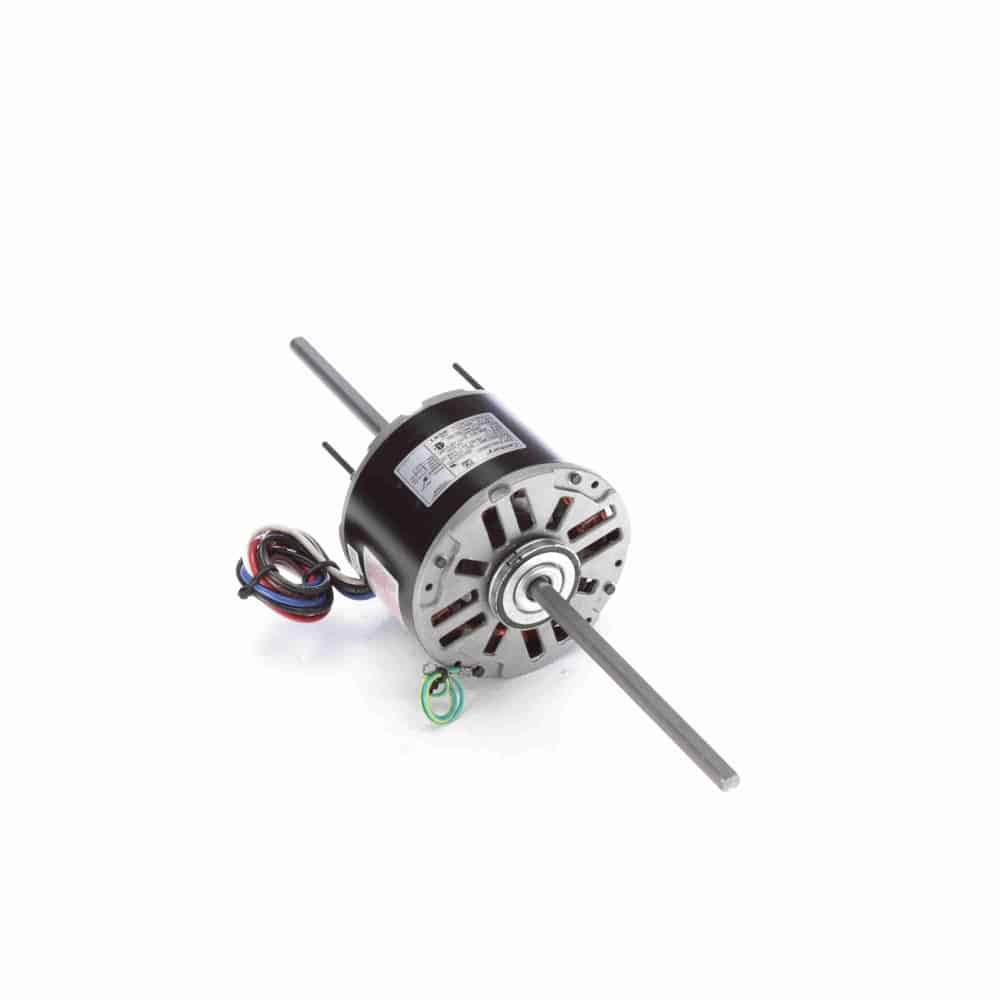

1/8HP Fan Coil & Air Conditioner Motor, 1 Phase, 48Y Frame, 1550 RPM, 3 Speed, Permanent Split Capacitor, 115V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
9681
Wright's #
CEN 9681
Specifications
C Dim
19.37"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
50 Hz
HP
0.13 HP
HP2
1/8 HP
Insulation Class
B
kW
0.1kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
2.3
Rated Voltage
115
Rotation
Counterclockwise Lead End
RPM
1550
Service Factor
1
Shaft Diameter
0.5"
Speed
1550
Starting Method
Description
Fan Coil – Room Air Conditioner – Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Semi-Enclosed Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Double Shaft with Flat϶” Leads
Extened Studs Opposite Lead End, Resilient Ring Mounting
1/8HP Fan Coil & Air Conditioner Motor, 1 Phase, 48Y Frame, 1550 RPM, 3 Speed, Permanent Split Capacitor, 115V, TEAO Enclosure
