Century
1/12HP PSC 42Y TE 1050 REV 115V 5uF-inc RF
Mfr # 9667 | Wright’s # CEN 9667

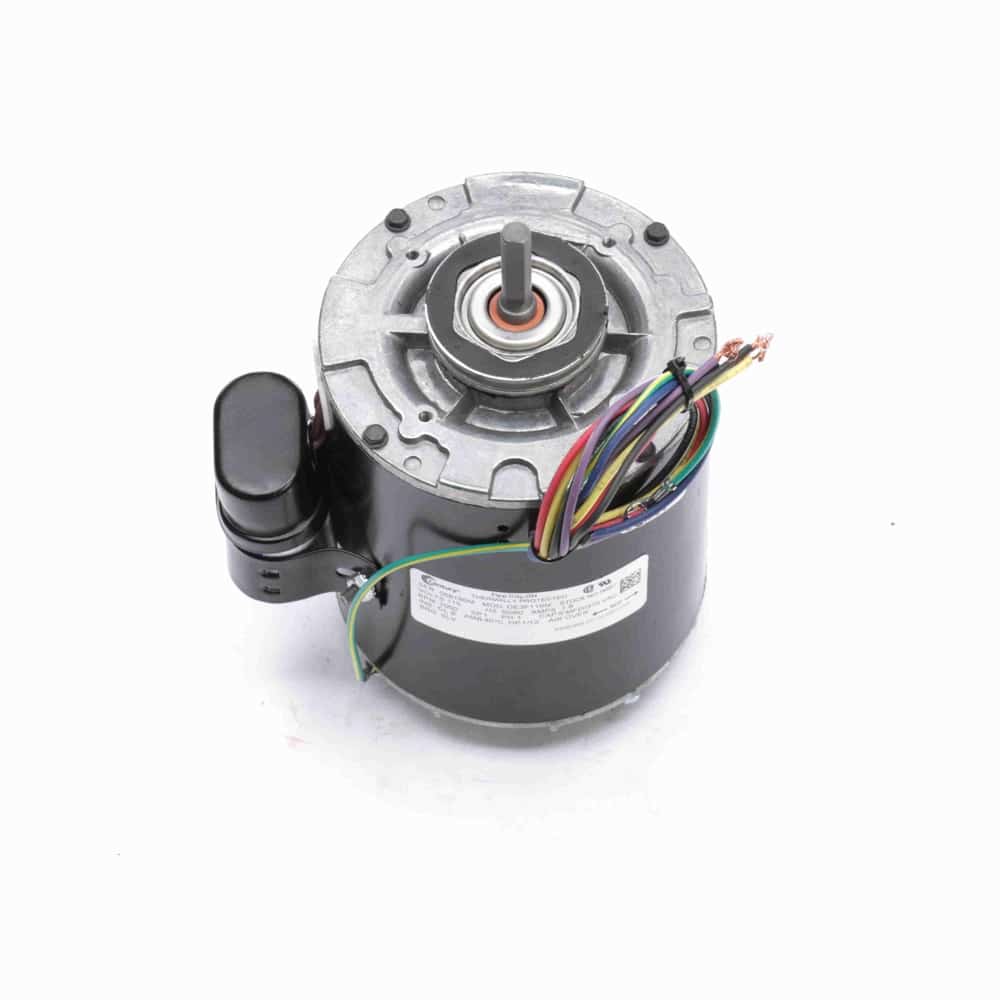

1/12HP Refrigeration Motor, 1 Phase, 42Y Frame, 1050 RPM, 1 Speed, Permanent Split Capacitor, 115V, TEAO Enclosure
$220.08
Product Information
Brand
Century
Mfr #
9667
Wright's #
CEN 9667
Specifications
C Dim
8.99"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
42Y
Frequency
50 Hz
HP
0.08 HP
HP2
1/12 HP
Insulation Class
B
kW
0.06kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1.8
Rated Voltage
115
Rotation
Reversible
RPM
1050
Service Factor
1
Shaft Diameter
0.375"
Speed
1050
Starting Method
Description
Refrigeration – Unit Heater – Space Heater Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
3/8″ Diameter Shaft with Flatϴ” Leads
Resilient Ring Mounting
1/12HP Refrigeration Motor, 1 Phase, 42Y Frame, 1050 RPM, 1 Speed, Permanent Split Capacitor, 115V, TEAO Enclosure
