Century

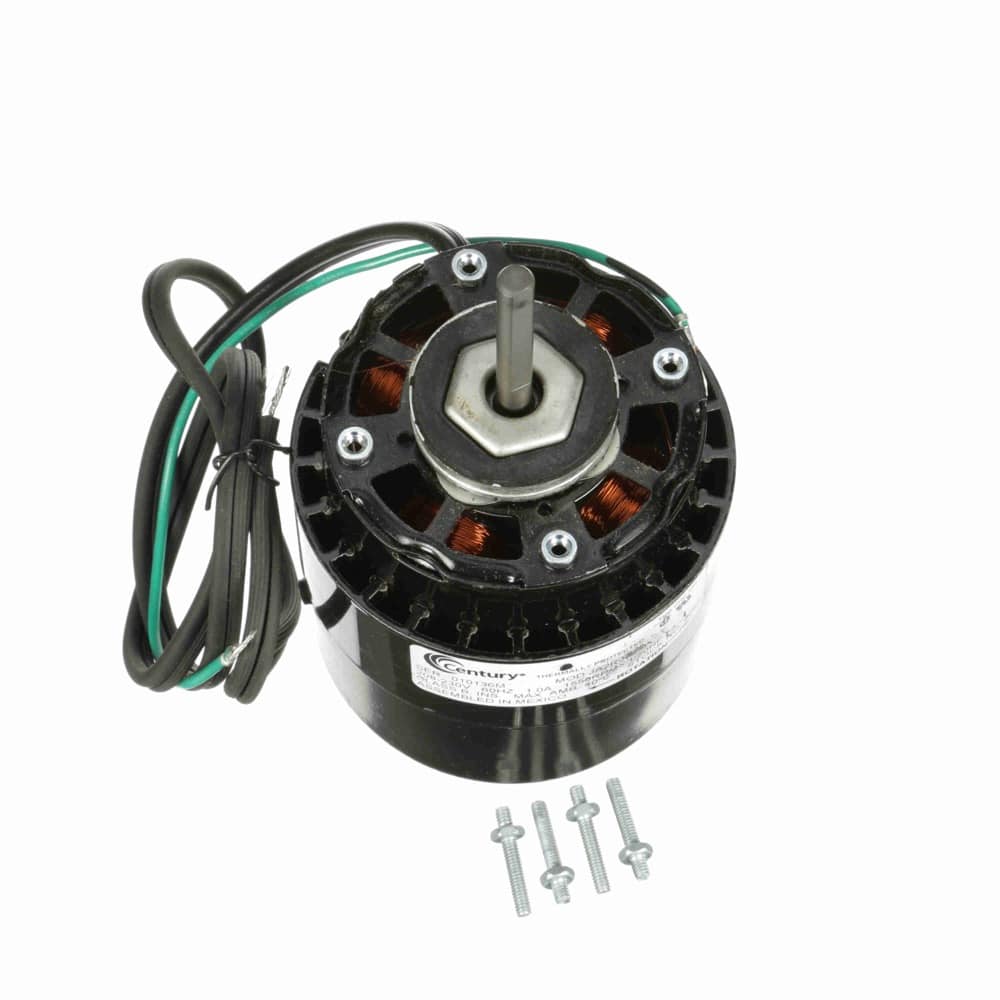

1/20HP ShP 3.3″ OAO 1550 CWSE 208-230V RF
Mfr # 9662 | Wright’s # CEN 9662
1/20HP Refrigeration Motor, 1 Phase, 3.3 Frame, 1550 RPM, 1 Speed, Shaded Pole, 208-230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
9662
Wright's #
CEN 9662
Specifications
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
3.3
Frequency
60 Hz
HP
0.05 HP
HP2
1/20 HP
Insulation Class
B
kW
0.04kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1
Rated Voltage
208-230
Rotation
Clockwise Shaft End
RPM
1550
Service Factor
1
Shaft Diameter
0.312"
Speed
1550
Starting Method
Description
General Purpose Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Fan Cooled
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with FlatЋ” Leads
Tapped Holes for Shaft End Mounting, Resilient Ring Mounting
1/20HP Refrigeration Motor, 1 Phase, 3.3 Frame, 1550 RPM, 1 Speed, Shaded Pole, 208-230V, OAO Enclosure
