Century

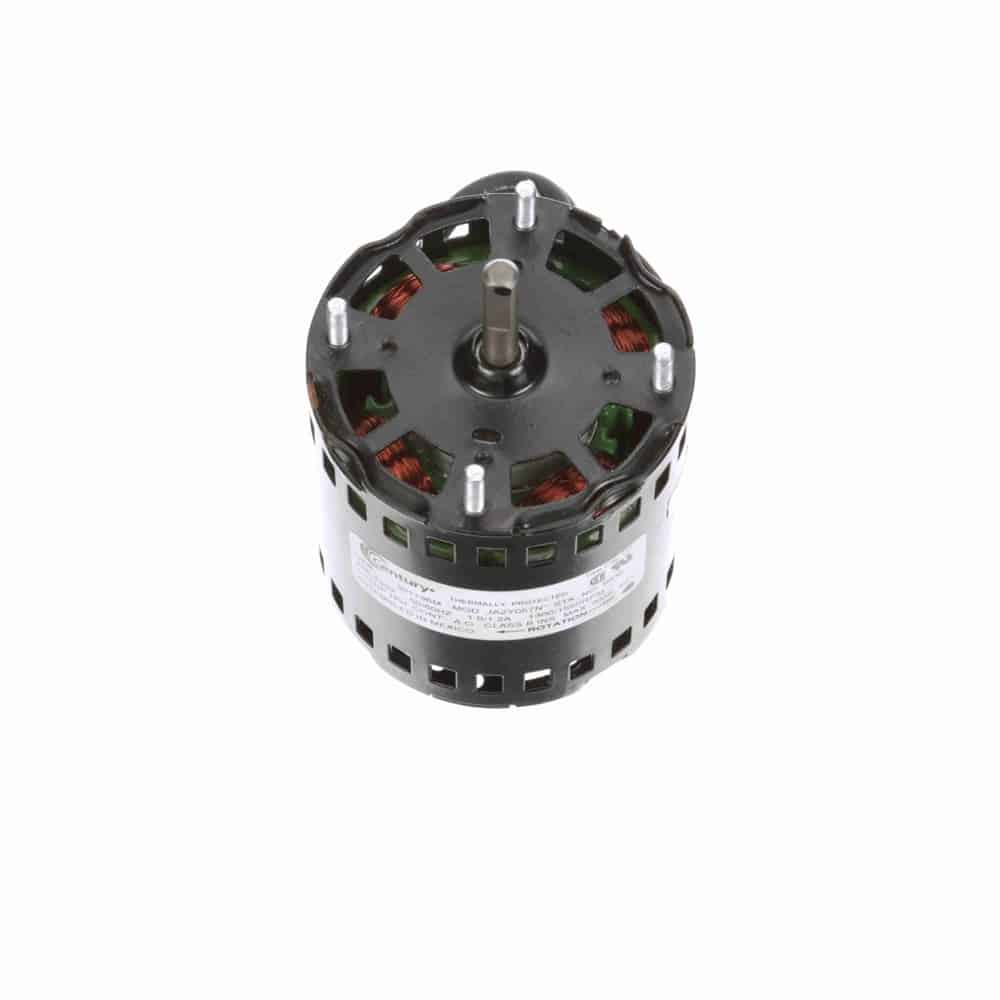

1/15HP ShP 3.3″ OAO 1550 CWSE 208-230V OEM
Mfr # 9632 | Wright’s # CEN 9632
1/15HP OEM Replacement Motor, 1 Phase, 3.3 Frame, 1550 RPM, 1 Speed, Shaded Pole, 208-230V, OAO Enclosure
$105.63
Product Information
Brand
Century
Mfr #
9632
Wright's #
CEN 9632
Specifications
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
3.3
Frequency
50 Hz
HP
0.07 HP
HP2
1/15 HP
Insulation Class
B
kW
0.05kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.0/1.2
Rated Voltage
208-230
Rotation
Clockwise Shaft End
RPM
1550
Service Factor
1
Shaft Diameter
0.312"
Speed
1300/1550
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with Flatϵ” Leads with Molded Plug
Extended Studs Shaft End
1/15HP OEM Replacement Motor, 1 Phase, 3.3 Frame, 1550 RPM, 1 Speed, Shaded Pole, 208-230V, OAO Enclosure
