Century

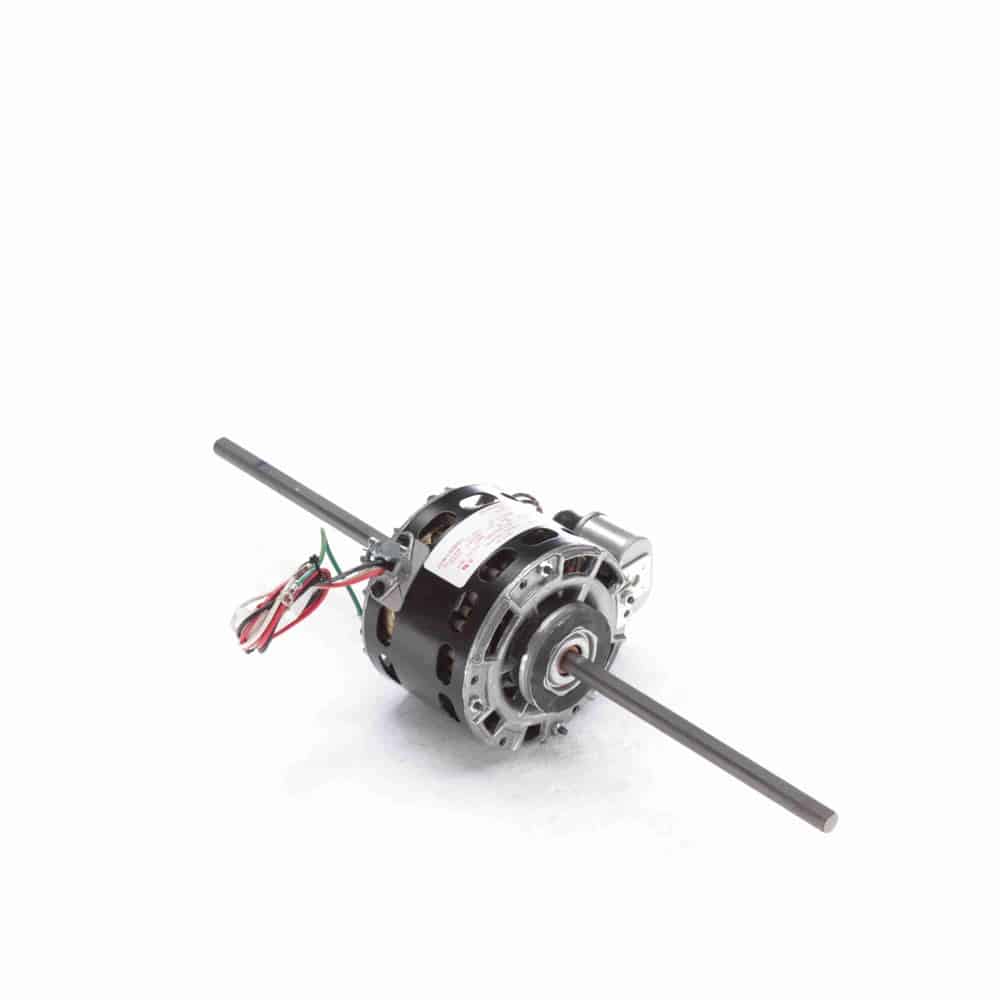

1/10HP PSC 5″ OAO 2spd 1550 CWSE 208-230V 5uF-inc
Mfr # 9614 | Wright’s # CEN 9614
1/10-1/5HP Fan Coil & Air Conditioner Motor, 1 Phase, 42 Frame, 1550 RPM, 2 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
$252.09
Product Information
Brand
Century
Mfr #
9614
Wright's #
CEN 9614
Country of Origin
MEX
Specifications
C Dim
19.5"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
42
Frequency
60 Hz
HP
0.1 HP
HP2
1/10-1/5 HP
Insulation Class
B
kW
0.07kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
2
Overload Protection
Automatic
Phase
1
Rated Current
1.3
Rated Voltage
208-230
Rotation
Counterclockwise Lead End
RPM
1550
Service Factor
1
Shaft Diameter
0.5"
Speed
1550
Starting Method
Description
Fan Coil – Dual Wheel Blower Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatД” Leads
Resilient Ring Mounting
1/10-1/5HP Fan Coil & Air Conditioner Motor, 1 Phase, 42 Frame, 1550 RPM, 2 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
