Century

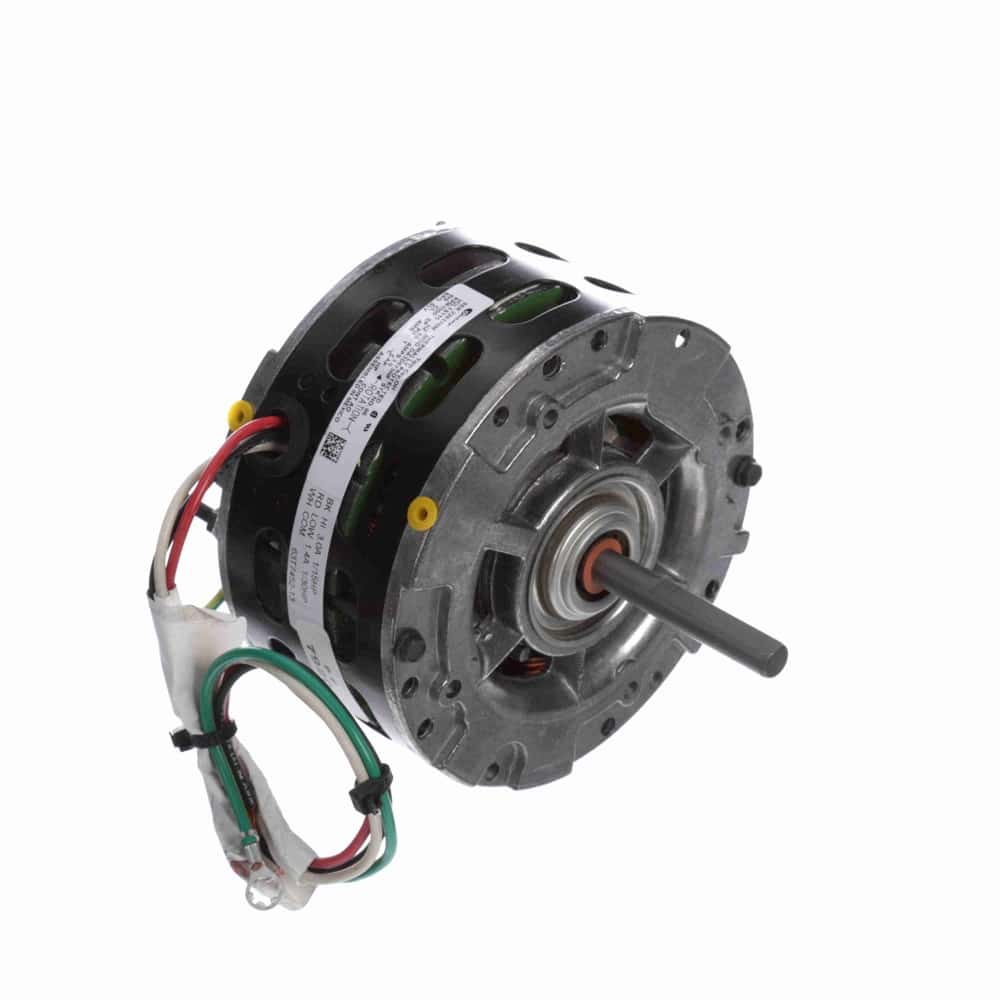

1/15HP ShP 5″ OAO 2spd 1050 CWSE 115V
Mfr # 96 | Wright’s # CEN 96
1/15-1/30HP Ventilation Motor, 1 Phase, 42 Frame, 1050 RPM, 2 Speed, Shaded Pole, 115V, OAO Enclosure
$166.58
Product Information
Brand
Century
Mfr #
96
Wright's #
CEN 96
Country of Origin
MEX
Specifications
C Dim
5.68"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
42
Frequency
60 Hz
HP
0.07 HP
HP2
1/15-1/30 HP
Insulation Class
A
kW
0.05kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
2
Overload Protection
Automatic
Phase
1
Rated Current
3
Rated Voltage
115
Rotation
Clockwise Shaft End
RPM
1050
Service Factor
1
Shaft Diameter
0.375"
Speed
1050
Starting Method
Description
Furnace Blower – Attic Ventilator – Air Handler – Fan Coil Motor
5″ Diameter – 42 Frame
Shaded Pole
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
3/8″ Diameter Shaft with Flatϴ” Leads
Extended Studs Opposite Shaft End
1/15-1/30HP Ventilation Motor, 1 Phase, 42 Frame, 1050 RPM, 2 Speed, Shaded Pole, 115V, OAO Enclosure
