Century
1/8HP PSC 42Y OAO 3spd 1500 CWSE 115V 5uF-inc OEM
Mfr # 945A | Wright’s # CEN 945A
1/8-1/20-1/30HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1500 RPM, 3 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
945A
Wright's #
CEN 945A
Country of Origin
MEX
Specifications
C Dim
23.5"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
42Y
Frequency
60 Hz
HP
0.13 HP
HP2
1/8-1/20-1/30 HP
Insulation Class
B
kW
0.1kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
1.2/0.7/0.4
Rated Voltage
115
Rotation
Counterclockwise Lead End
RPM
1500
Service Factor
1
Shaft Diameter
0.5"
Speed
1500
Starting Method
Description

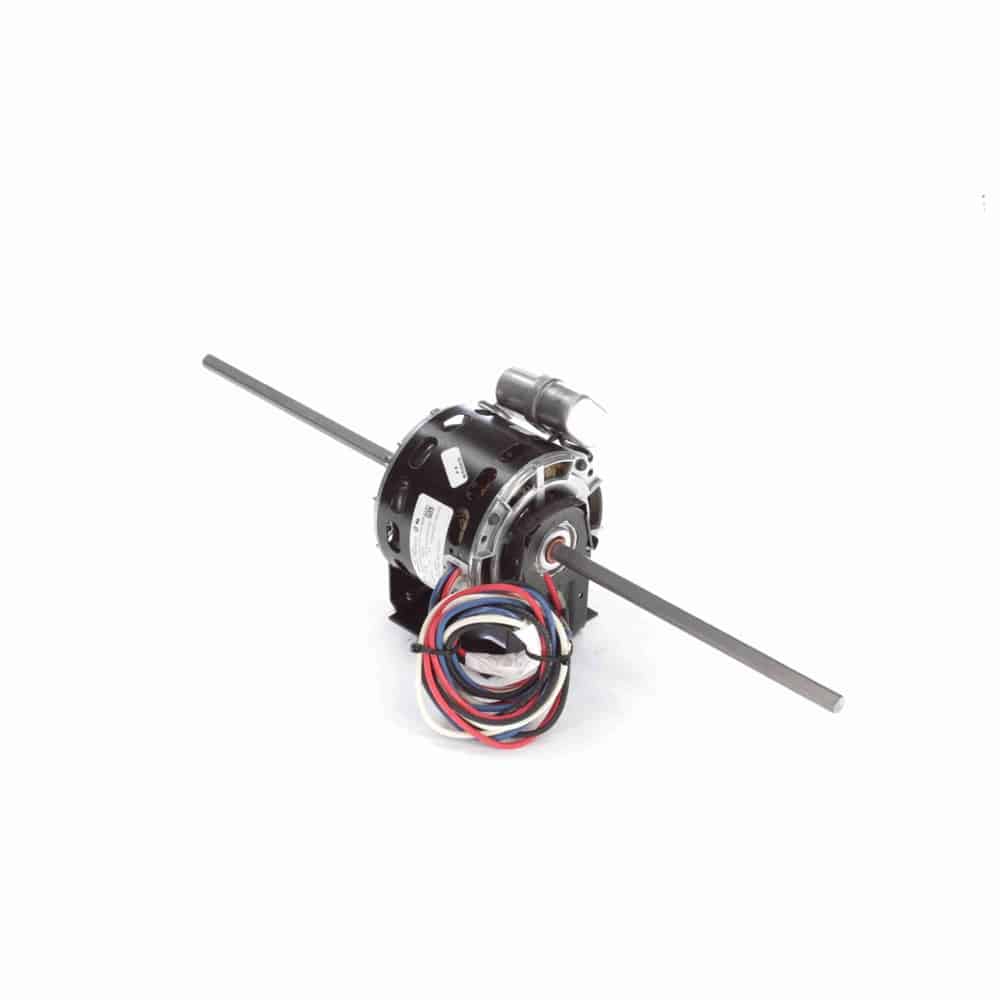

OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Double Shaft with FlatП” Leads
Resilient Base
1/8-1/20-1/30HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1500 RPM, 3 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
