Century

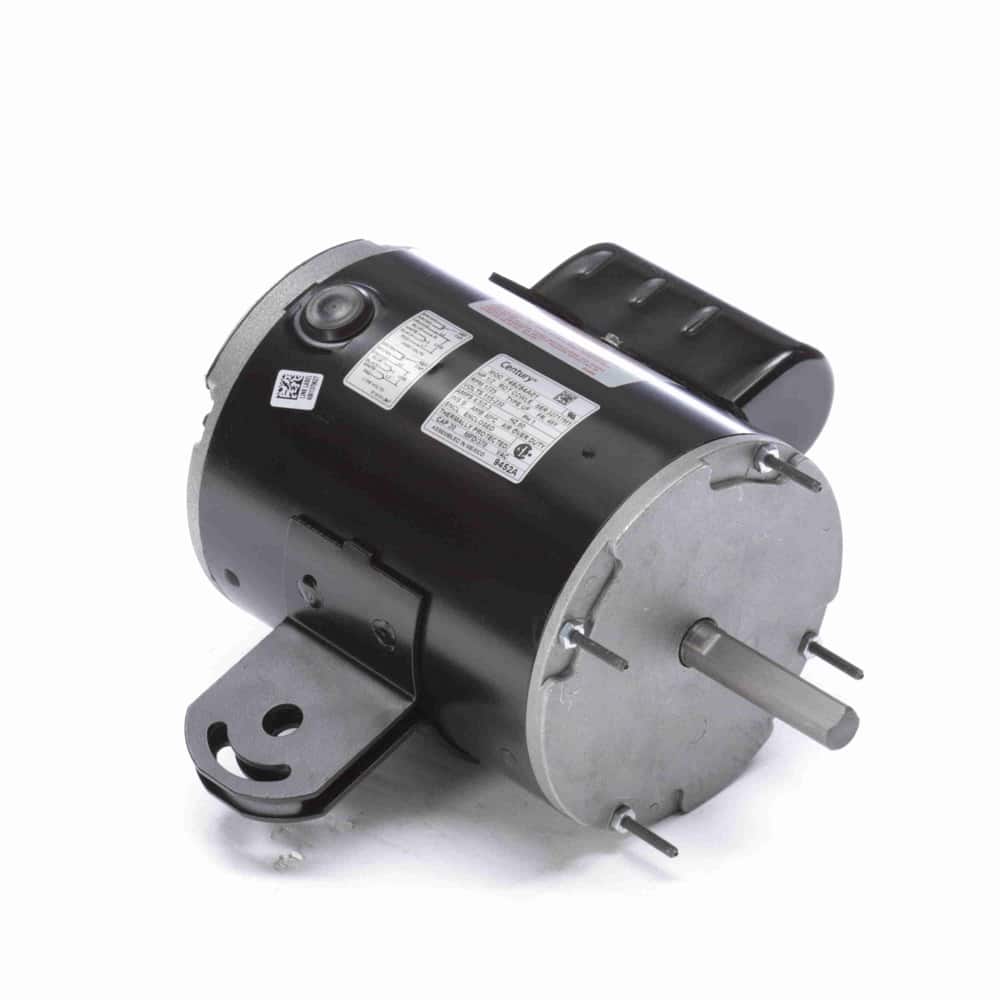

1/2HP PSC 48Y TE 1725 CWSE 115/230V 20uF-inc PFM
Mfr # 9452A | Wright’s # CEN 9452A
1/2HP Pedestal Fan Motor, 1 Phase, 48Y Frame, 1725 RPM, 1 Speed, Permanent Split Capacitor, 115/230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
9452A
Wright's #
CEN 9452A
Specifications
C Dim
10.05"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
4.5/2.3
Rated Voltage
115/230
Rotation
Counterclockwise Lead End
RPM
1725
Service Factor
1
Shaft Diameter
0.63"
Speed
1725
Starting Method
Description
Pedestal Fan Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 20 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Totally Enclosed Air over
Class B Insulation, 40°C Ambient
Ball Bearing
5/8″ Diameter Shaft with Flati.5″ Leads
Yoke Mount
1/2HP Pedestal Fan Motor, 1 Phase, 48Y Frame, 1725 RPM, 1 Speed, Permanent Split Capacitor, 115/230V, TEAO Enclosure
