Century

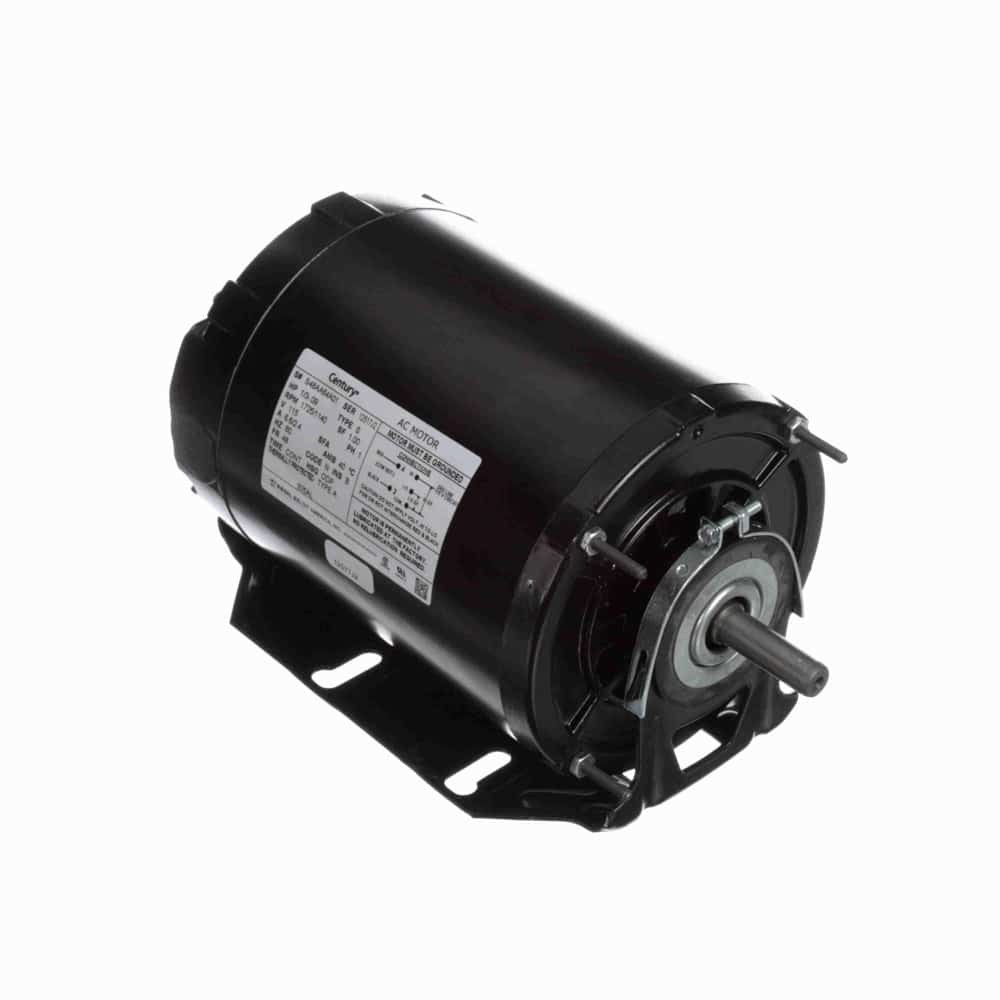

1/3HP 1PH 5.6″ ODP 2spd 1725 REV 115V BM
Mfr # 925AL | Wright’s # CEN 925AL
1/3-.09HP Fan & Blower Motor, 1 Phase, 48 Frame, 1725 RPM, 2 Speed, Split Phase, 115V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
925AL
Wright's #
CEN 925AL
Country of Origin
MEX
Specifications
C Dim
10.29"
Electrical Type
Split Phase
Enclosure
ODP
Frame
48
Frequency
60 Hz
HP
0.33 HP
HP2
1/3-.09 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4/6
Number of Speeds
2
Overload Protection
Automatic
Phase
1
Rated Current
6.6/2.4
Rated Voltage
115
Rotation
Reversible
RPM
1725
Service Factor
1
Shaft Diameter
0.5"
Speed
1725/1140
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use.
Double-shielded bearings extend the service life of the motor.
Automatic reset thermal protector (as noted) protects against overload.
Moderate starting torque helps reduce fan stresses.
1/3-.09HP Fan & Blower Motor, 1 Phase, 48 Frame, 1725 RPM, 2 Speed, Split Phase, 115V, ODP Enclosure
