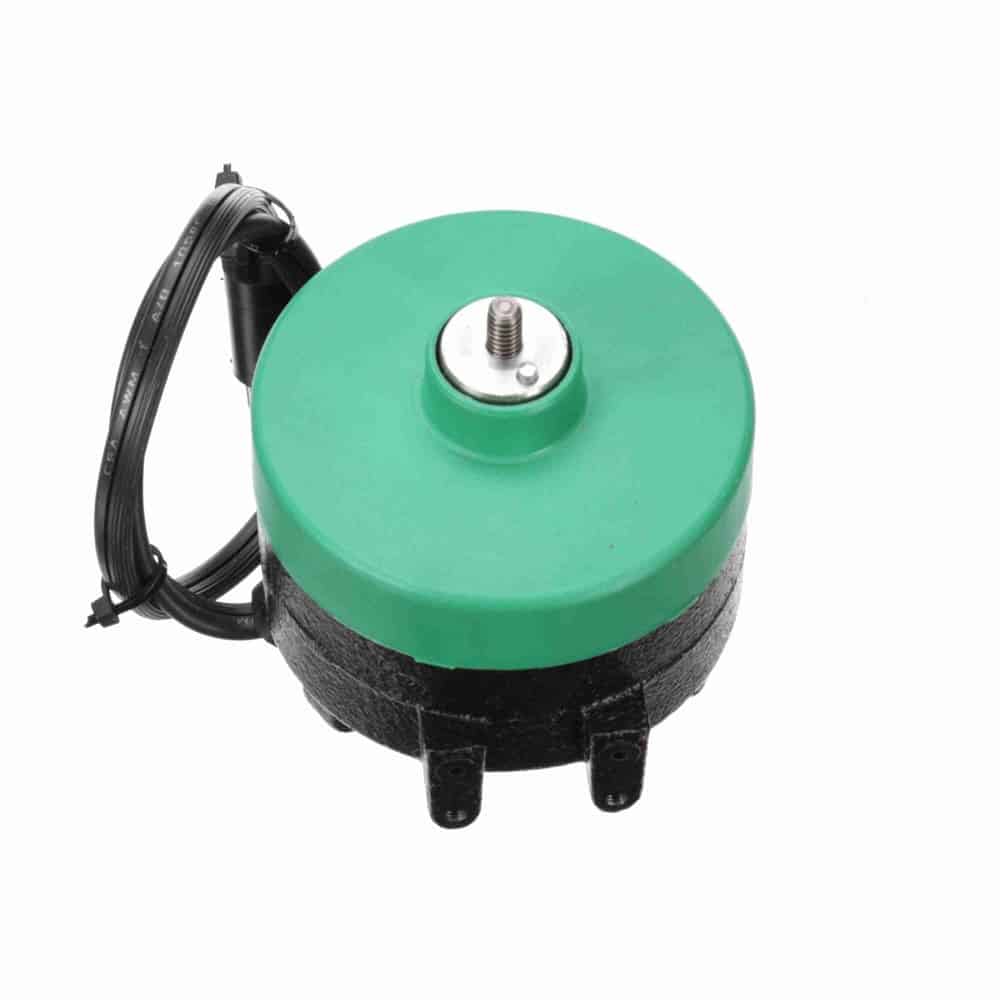

Century
6-9-12W ECM 1550 CWLE 115V 0.2-0.3A CI
Mfr # 9207F2 | Wright’s # CEN 9207F2
HP 6-9-12W Unit Bearing Motor, 1 Phase, UNIT BEARING Frame, 1550 RPM, 1 Speed, Electronically Commutated Motor, 115V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Sub-Brand
iMotor®
Mfr #
9207F2
Wright's #
CEN 9207F2
Specifications
Electrical Type
Electronically Commutated Motor
Enclosure
TEAO
Frame
UNIT BEARING
Frequency
60 Hz
Insulation Class
A
Material
Cast Iron
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
0.2-0.3
Rated Voltage
115
Rotation
Clockwise Lead End
RPM
1550
Service Factor
1
Shaft Diameter
0.25"
Speed
1550
Starting Method
Watt
6-9-12
Description
iMotor™ – Refrigeration Motor
Unit Bearing
Electronically Commutated (ECM)
Thermally Protected
Totally Enclosed Air Over
Class A Insulation, 40°C Ambient
Bearing – Unit
1/4 x 20 Threaded ShaftϷ” Leads with Molded Plug
Tapped Double Boss, 5 Cored Holes Opposite Shaft End
HP 6-9-12W Unit Bearing Motor, 1 Phase, UNIT BEARING Frame, 1550 RPM, 1 Speed, Electronically Commutated Motor, 115V, TEAO Enclosure
