Century

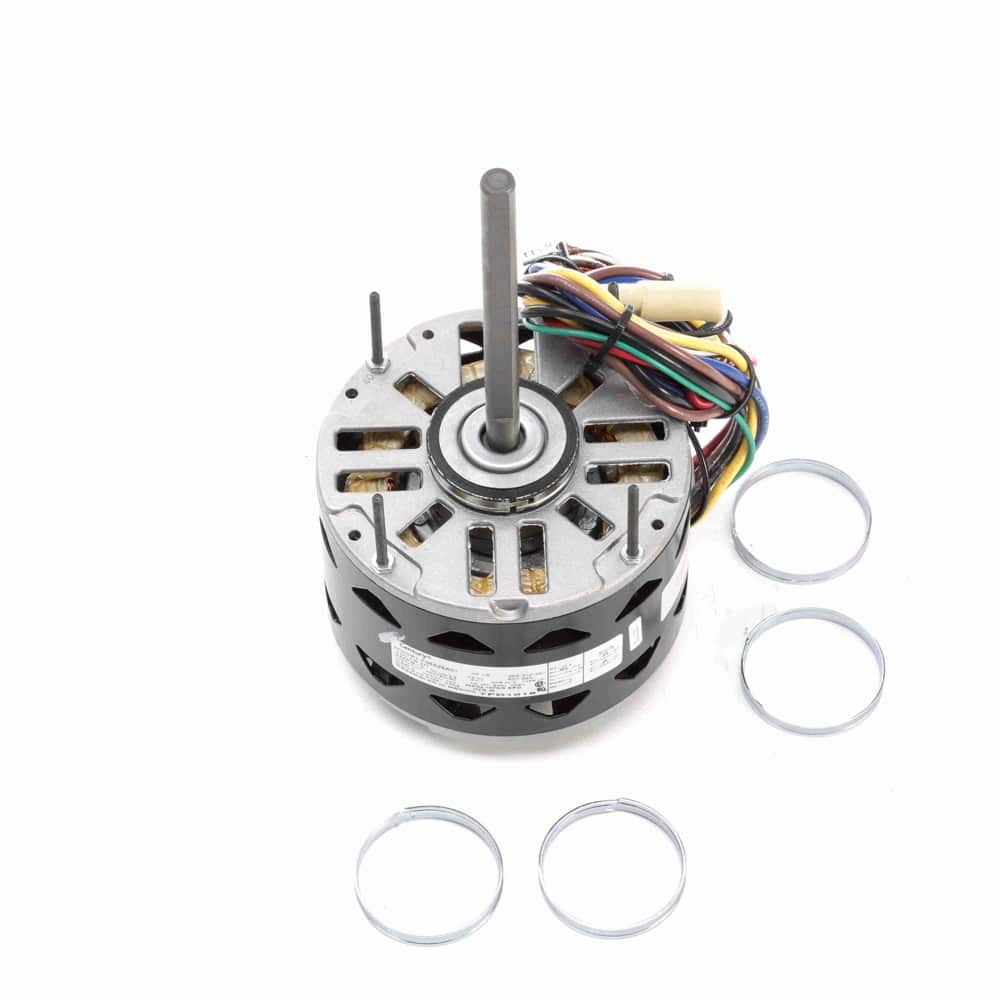

1/6HP PSC 48Y ODP 3spd 1075 REV 277V 5uF BM
Mfr # 7FD1016 | Wright’s # CEN 7FD1016
1/6HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 277V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
7FD1016
Wright's #
CEN 7FD1016
Country of Origin
IND
Specifications
C Dim
10.68"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Frame
48Y
Frequency
60 Hz
HP
0.17 HP
HP2
1/6 HP
Insulation Class
B
kW
0.13kW
Material
Rolled Steel
Max Ambient
50°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
0.8
Rated Voltage
277
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
Direct Drive Fan & Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 50°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2″ Diameter Double Shaft with FlatЃ” Leads
Extended Studs Shaft End, Resilient Ring Mounting
1/6HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 277V, ODP Enclosure
