Century

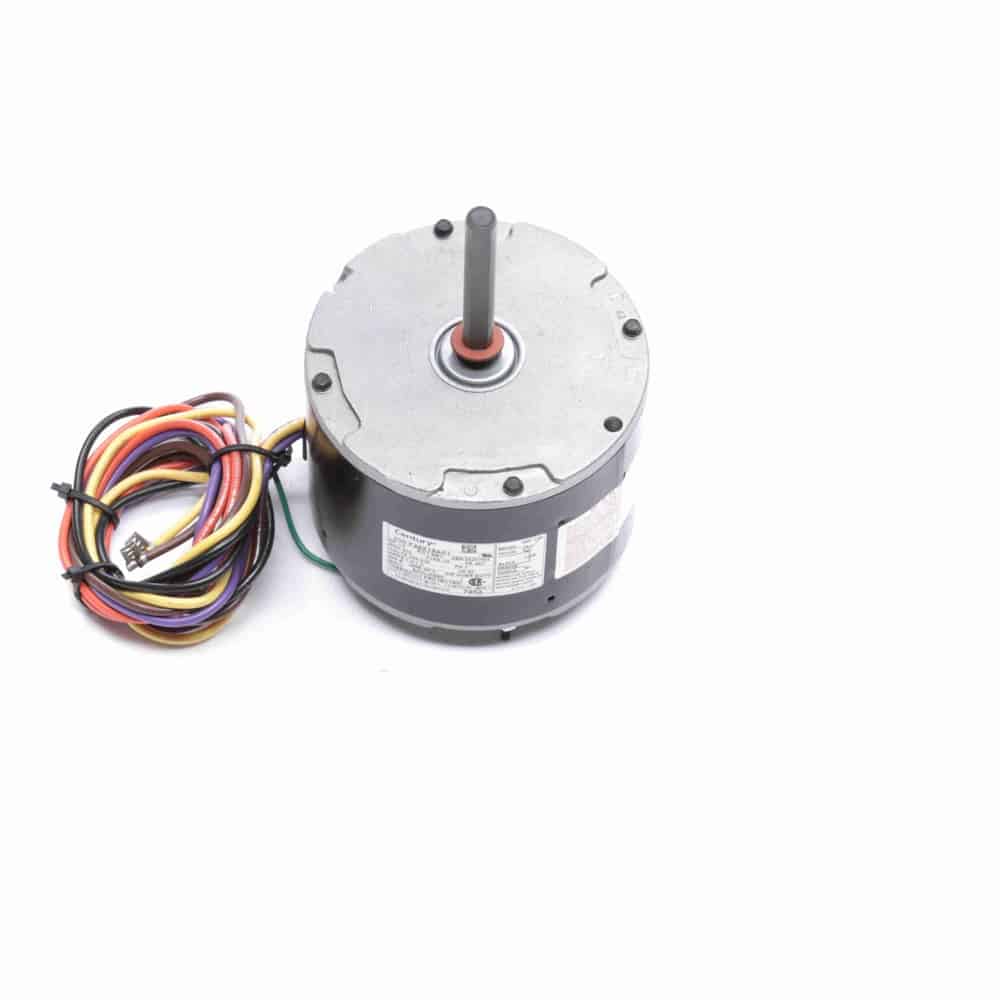

1/5HP PSC 48Y TE 825 REV 208-230V 5uF OEM
Mfr # 795A | Wright’s # CEN 795A
1/5HP OEM Replacement Motor, 1 Phase, 48Y Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
795A
Wright's #
CEN 795A
Specifications
C Dim
8.38"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.2 HP
HP2
1/5 HP
Insulation Class
B
kW
0.15kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
8
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1.4 /1.3
Rated Voltage
208-230
Rotation
Reversible
RPM
825
Service Factor
1
Shaft Diameter
0.5"
Speed
825
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 / 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЌ” Leads with Quick Connect Terminals
Extended Studs Opposite Shaft End, Mounting Holes in Shell
1/5HP OEM Replacement Motor, 1 Phase, 48Y Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
