Century

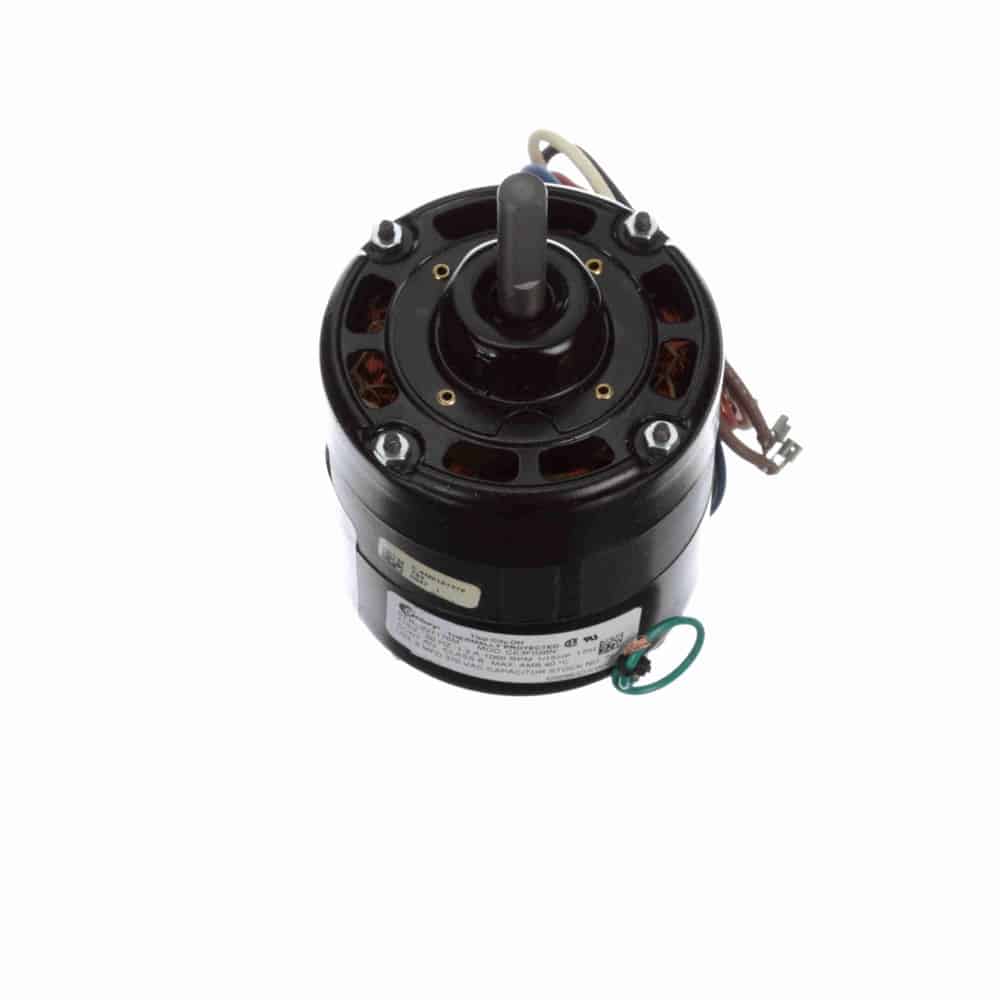

1/15HP PSC 4.4″ OAO 3spd 1060 REV 115V 6uF
Mfr # 793 | Wright’s # CEN 793
1/15HP Ventilation Motor, 1 Phase, 4.4 Frame, 1060 RPM, 3 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
$345.00
Product Information
Brand
Century
Mfr #
793
Wright's #
CEN 793
Specifications
C Dim
7.2"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
4.4
Frequency
60 Hz
HP
0.07 HP
HP2
1/15 HP
Insulation Class
B
kW
0.05kW
Max Ambient
40°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
1.2
Rated Voltage
115
Rotation
Reversible
RPM
1060
Service Factor
1
Shaft Diameter
0.5"
Speed
1060
Starting Method
Description
Heating – Ventilating – Welding Unit Motor
4.4″ Diameter
Permanent Split Capacitor (PSC); Capacitor Required: 6 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЀ.5″ Leads
Resilient Ring Mounting
1/15HP Ventilation Motor, 1 Phase, 4.4 Frame, 1060 RPM, 3 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
