Century
1/2HP PSC 48Y TE 1075 REV 460V 10uF CF
Mfr # 790A | Wright’s # CEN 790A

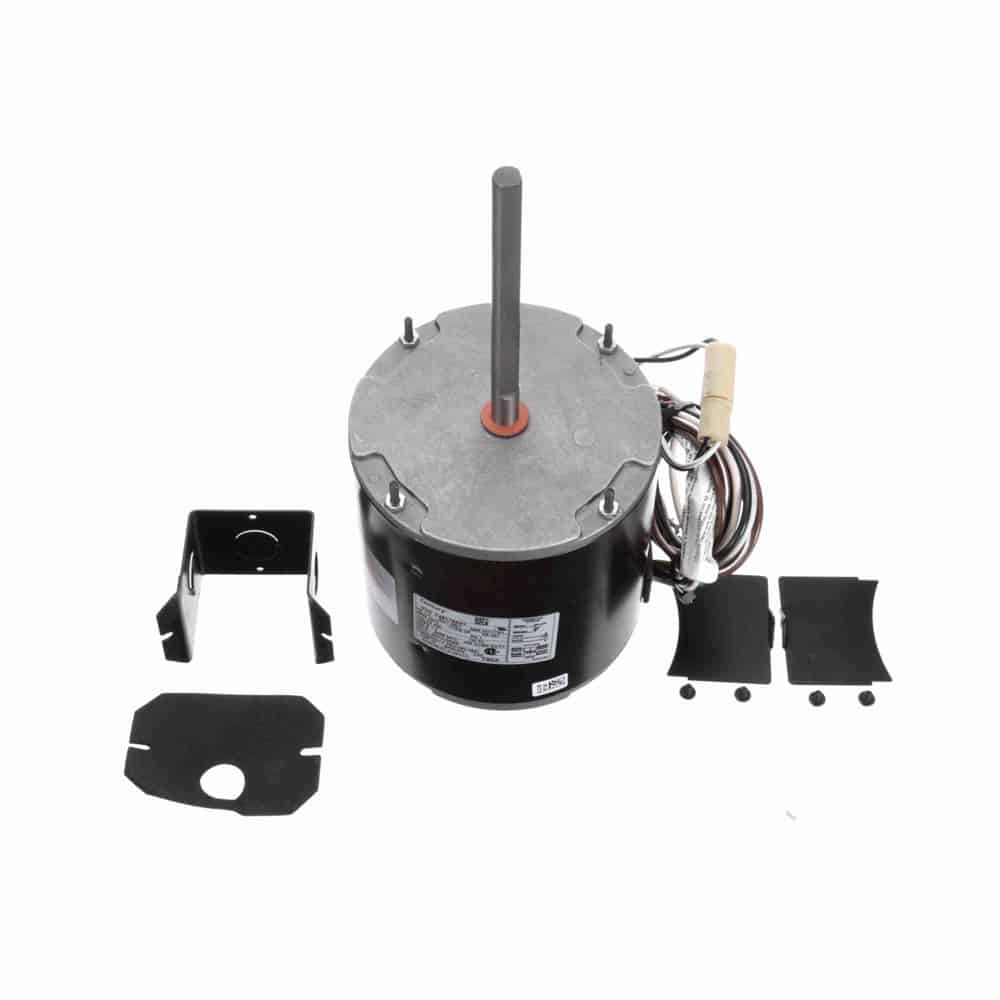

1/2HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 460V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
790A
Wright's #
CEN 790A
Specifications
C Dim
11.67"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1.5
Rated Voltage
460
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
Condenser Fan – Heat Pump – Refrigeration Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatЂ” Leads
Extended Studs Shaft End
1/2HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 460V, TEAO Enclosure
