Century

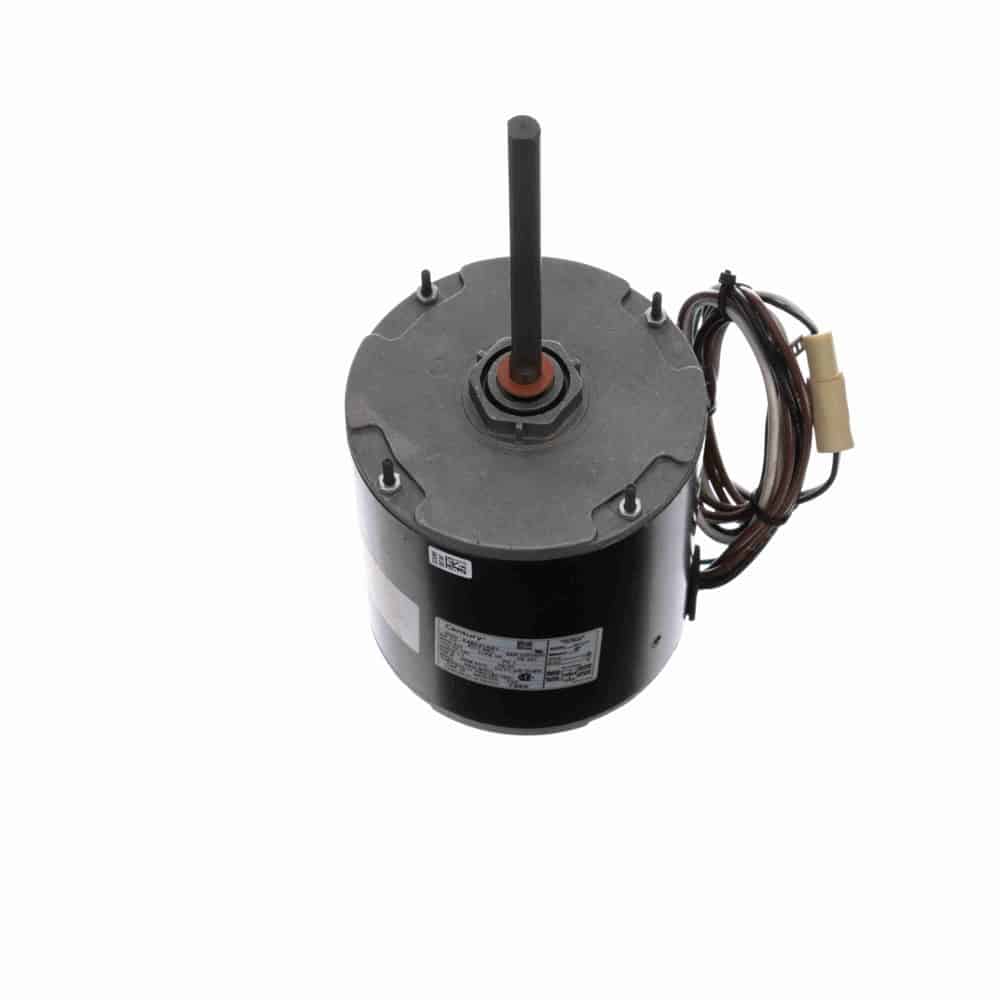

1/3HP PSC 48Y TE 825 REV 460V 10uF CF
Mfr # 786A | Wright’s # CEN 786A
1/3HP Condenser Fan Motor, 1 Phase, 48Y Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 460V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
786A
Wright's #
CEN 786A
Specifications
C Dim
12.36"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
8
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1.1
Rated Voltage
460
Rotation
Reversible
RPM
825
Service Factor
1
Shaft Diameter
0.5"
Speed
825
Starting Method
Description
Condenser Fan – Heat Pump – Refrigeration Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Semi-Enclosed Air Over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatЂ” Leads
Extended Studs Shaft End
1/3HP Condenser Fan Motor, 1 Phase, 48Y Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 460V, TEAO Enclosure
