Century
1/4HP PSC 48Y TE 1725 REV 115/230V 5uF-inc
Mfr # 767A | Wright’s # CEN 767A

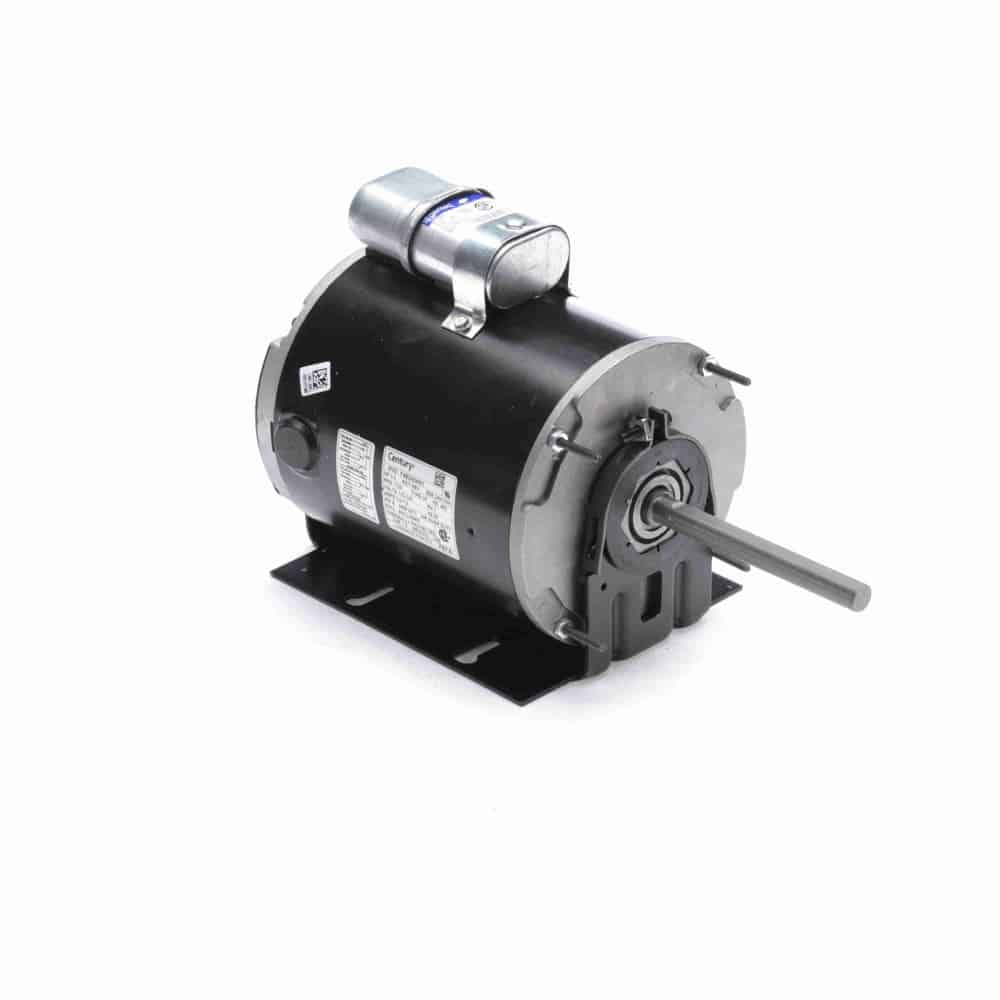

1/4HP Unit Heater Motor, 1 Phase, 48Y Frame, 1725 RPM, 1 Speed, Permanent Split Capacitor, 115/230V, TEAO Enclosure
$413.88
Product Information
Brand
Century
Mfr #
767A
Wright's #
CEN 767A
Country of Origin
MEX
Specifications
C Dim
12.25"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
3.0/1.6
Rated Voltage
115/230
Rotation
Reversible
RPM
1725
Service Factor
1
Shaft Diameter
0.5"
Speed
1725
Starting Method
Description
Unit Heater Fan Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Totally Enclosed Air over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Flath” Leads
Resilient Base
1/4HP Unit Heater Motor, 1 Phase, 48Y Frame, 1725 RPM, 1 Speed, Permanent Split Capacitor, 115/230V, TEAO Enclosure
