Century

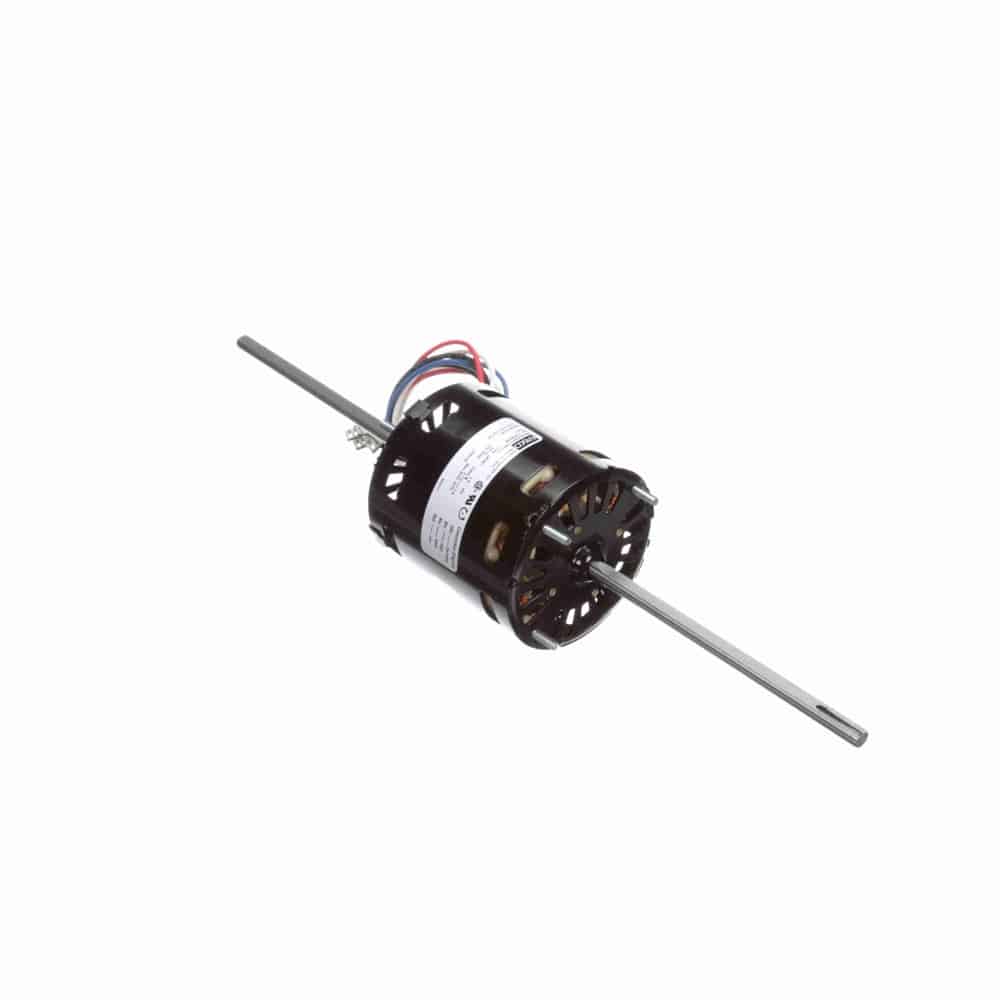

1/12HP ShP 3.3″ OAO 4spd 1550 CWSE 115V
Mfr # 757 | Wright’s # CEN 757
1/12-1/20-1/30HP Ventilation Motor, 1 Phase, 3.3 Frame, 1550 RPM, 4 Speed, Shaded Pole, 115V, OAO Enclosure
$89.35
Product Information
Brand
Century
Mfr #
757
Wright's #
CEN 757
Specifications
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
3.3
Frequency
60 Hz
HP
0.08 HP
HP2
1/12-1/20-1/30 HP
Insulation Class
A
kW
0.06kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
4
Overload Protection
Thermally Protected
Phase
1
Rated Current
3.0/2.1/1.7
Rated Voltage
115
Rotation
Counterclockwise Lead End
RPM
1550
Service Factor
1
Shaft Diameter
0.312"
Speed
1550
Starting Method
Description
Room Air Conditioning and Double Blower Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Double Shaft with Flatϼ” Leads with AMP Terminals
Extended Studs Shaft End and Opposite Shaft End
1/12-1/20-1/30HP Ventilation Motor, 1 Phase, 3.3 Frame, 1550 RPM, 4 Speed, Shaded Pole, 115V, OAO Enclosure
