Century

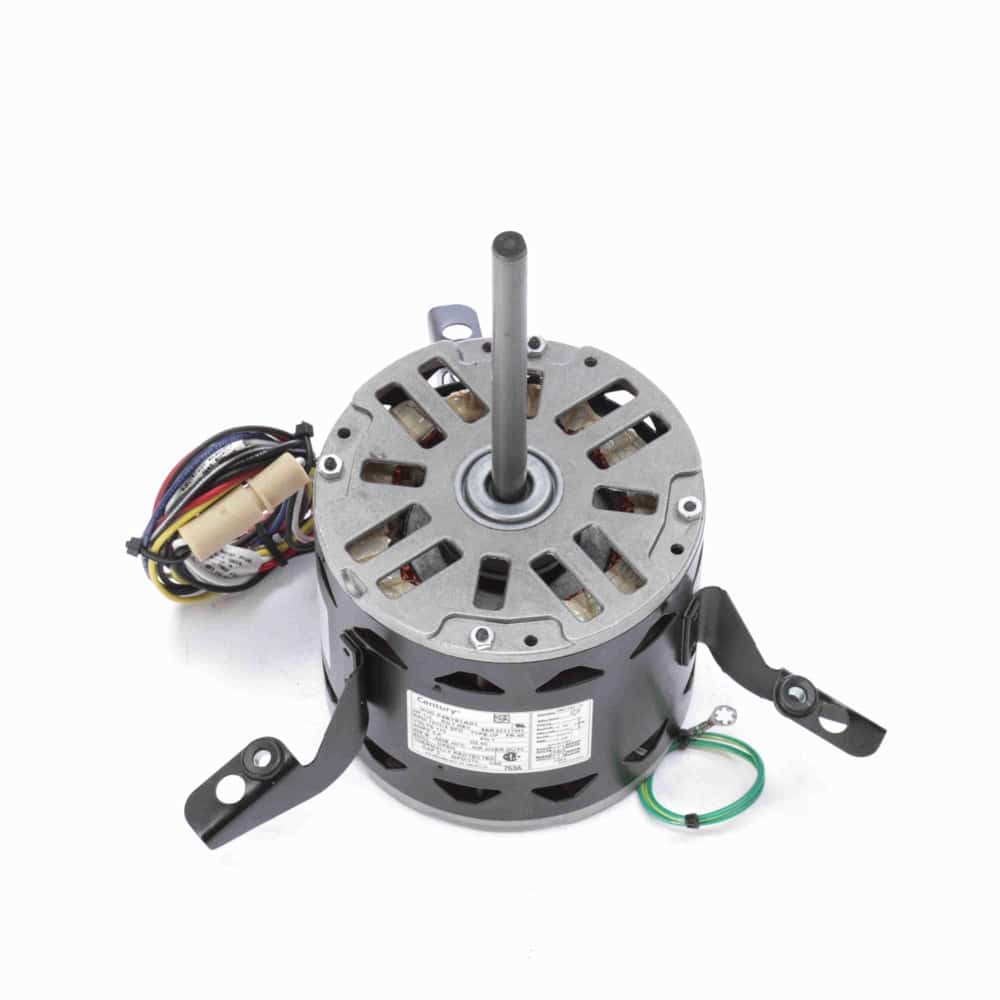

1/3HP PSC 5.6″ OAO 4spd 1075 REV 115V 5uF
Mfr # 753A | Wright’s # CEN 753A
1/3HP Fan Coil & Air Conditioner Motor, 1 Phase, 48 Frame, 1075 RPM, 4 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
753A
Wright's #
CEN 753A
Country of Origin
IND
Specifications
C Dim
10.38"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
48
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
4
Overload Protection
Automatic
Phase
1
Rated Current
5.6
Rated Voltage
115
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
Fan Coil – Room Air Conditioner – Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2″ Diameter Shaft with FlatЁ” Leads
Flex Mount
1/3HP Fan Coil & Air Conditioner Motor, 1 Phase, 48 Frame, 1075 RPM, 4 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
